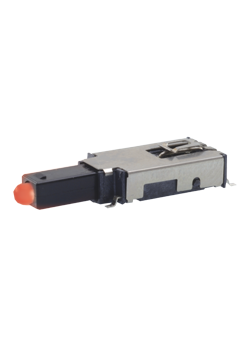

C&K COMPONENTS ELUMOATHQ1C12 Right Angle Latching Pushbutton
The C&K COMPONENTS ELUMOATHQ1C12 is a versatile illuminated latching pushbutton switch designed for a wide range of applications. Its right-angle configuration and low profile make it ideal for space-constrained environments. The switch offers SPDT (N.O. & N.C.) functionality, low height above the PCB, and reliable self-cleaning contacts. It's suitable for both surface-mount and thru-hole PCB mounting and is RoHS compliant. Typical applications include telecom network equipment, automotive electronics, consumer electronics, computer systems, and professional instrumentation. Custom actuators and other plating options are available upon request.
C&K COMPONENTS ELUMOATHQ1C12 Right Angle Latching Pushbutton Specifications:
- Operating Temperature: -40˚C TO 80˚C
- Storage Temperature: -40˚C TO 80˚C
- Relative Humidity: 90% R.H. @ 80˚C
- Operating Life: 30,000 Cycles
- Vibration: Per EIA 186-E Method
- Mechanical Shock: Per EIA 186-E Method 12
- Overload: Withstands 40 N for 1 minute without damage
- Fixed Contacts: Stainless steel, silver plated with gold flash
- Terminals: Stainless steel, silver plated
- Movable Contacts: Copper alloy, silver plated with gold flash
- Base: Glass filled LCP (UL94V-0)
- Actuator: Glass filled nylon 4/6 (UL94V-0)
- Cover: Stainless steel
- Maximum Power: 3.5 VA
- Minimum/Maximum Voltage: 20 mV – 50 VDC
- Minimum/Maximum Current: 0.01 mA – 250 mA
- Dielectric Strength: ≥ 250 Vrms
- Contact Resistance: ≤ 50 mΩ
- Insulation Resistance: ≥ 10[9] Ω
- Bounce Time: ≤1 ms
- LED Specifications: See page A-5
- Solderability: According to Mil STD 202F Method 208D or EIA RS-186E Method 9
- Lead Free Process Compatibility: 260˚C peak, 10 seconds Max. above 250º C
- Washing Process: No clean process compatible (SMT) Bottom wash compatible (Thru-hole)
- Shear Test (Switch/PCB): > 40 N
- Switching Travel: .067” (1.7 mm)
- Latch Travel: .131” (3.6 mm)
- Full Travel: .200” (5.1 mm)
- Operating Force: 2.5 N at Full Travel
