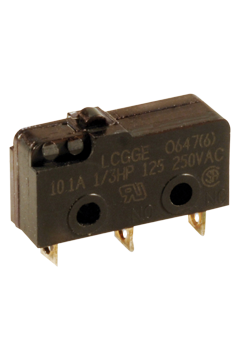

C&K COMPONENTS LCGHF5A10ECE Snap-Acting Precision Switch
The C&K Components LCGHF5A10ECE is a subminiature precision snap-acting switch offering a compact design and robust performance. It's engineered for long life and high electrical capacity, providing reliable switching action in various applications. The switch's quick connect options and diverse actuator styles allow for flexible integration into different systems. Commonly used in motorized equipment, sump pumps, and thermostatic controls, the LCGHF5A10ECE delivers dependable functionality in demanding environments. Its thermoplastic polyester or high-temperature thermoplastic housing ensures durability, while the fine silver or gold-plated contacts provide reliable electrical contact.
C&K COMPONENTS LCGHF5A10ECE Snap-Acting Precision Switch Specifications:
- Contact Rating: From low level to 10.1 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles
- Insulation Resistance: 1,000 M ohm min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -17ºF to 185ºF (-25ºC to 85ºC)
- Operating Force: From 142 to 170 grams at actuator button
- Mounting: 2-56 screws, torque 2.3 in/lbs max.
- Switch Housing: Thermoplastic polyester or high temperature thermoplastic (PTS) (UL 94V-0)
- Actuator Button: Thermoplastic polyester (UL 94V-0)
- Spring: Copper alloy
- Pivot: Copper alloy
- Movable Contacts: Fine silver for ratings greater than 1 AMP @ 125 V AC; Fine silver with 24K gold plate for 1 AMP @ 125 V AC or less
- Stationary Contacts: Fine silver welded on copper alloy for ratings greater than 1 AMP @ 125 V AC; Gold alloy welded on copper alloy for ratings less than 1 AMP @ 125 V AC
- Terminals: Copper alloy
- Terminal Seal: Epoxy
Buy the LCGF5A10ECE C&K COMPONENTS Snap-Acting Precision Switch | myMectronic
Purchase the C&K Components LCGHF5A10ECE switch securely and efficiently through our online platform.
