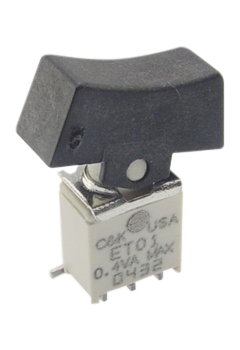

C&K COMPONENTS ET01J1ABE2 Sealed Rocker Switch
The C&K Components ET01J1ABE2 is a sealed subminiature rocker switch offering a compact footprint and reliable performance. Constructed with glass-filled nylon 6/6 or 4/6 nylon, and featuring a UL 94V-0 rating, this switch provides excellent flame retardancy and heat stability. It's ideal for applications requiring resistance to contaminants and harsh environments, such as telecommunications equipment, instrumentation panels, and computer peripherals. The switch is RoHS compliant and available with various contact materials and actuator options to meet specific design requirements. Its sealed design ensures reliable operation even in challenging conditions.
C&K COMPONENTS ET01J1ABE2 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC
- Electrical Life: 60,000 cycles at full load (ETX1 models), 30,000 cycles (other models)
- Contact Resistance: Below 20 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Solderability: Per MIL-STD-202F method 208D or EIA RS-186E method 9
- Case & Bushing: Glass filled nylon 6/6 or 4/6 nylon (UL 94V-0)
- Actuator: Nylon, black standard, with internal o-ring seal
- Switch Support: Brass, matte-tin plated
- Contacts & Terminals: Copper alloy, gold or silver plated
- Terminal Seal: Epoxy
