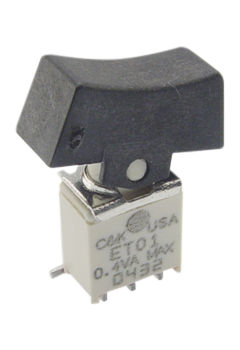

C&K COMPONENTS ET01J6CBE2 Sealed Rocker Switch
The C&K Components ET01J6CBE2 is a sealed subminiature rocker switch engineered for demanding environments. Its compact footprint saves valuable space, while the sealed design protects against contaminants. Constructed with UL 94V-0 rated materials, this switch ensures flame retardancy and heat stability. Ideal for telecommunications equipment, instrumentation panels, and computer peripherals, the ET01J6CBE2 provides reliable switching functionality with RoHS compliance for environmentally conscious designs. Available with various actuator colors and termination options to suit diverse application requirements.
C&K COMPONENTS ET01J6CBE2 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC
- Contact Material: Copper alloy, silver plated (Q contact material)
- Electrical Life: 60,000 cycles (ETX1 models), 30,000 cycles (other models)
- Contact Resistance: Below 20 m Ω typ. initial
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Solderability: Per MIL-STD-202F method 208D or EIA RS-186E method 9
- Case and Bushing Material: Glass filled nylon 6/6 or 4/6 nylon (UL 94V-0)
- Actuator Material: Nylon (black standard)
- Switch Support Material: Brass, matte-tin plated
- Contacts and Terminals Material: Copper alloy, gold or silver plated
- Terminal Seal Material: Epoxy
Buy the ET01J6CBE2 C&K COMPONENTS Sealed Rocker Switch | myMectronic
Purchase the C&K Components ET01J6CBE2 securely and efficiently for your next project.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS ET01J6CBE2?
You can click on the BUY or RFQ button to purchase ET01J6CBE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ET01J6CBE2?
You can download the ET01J6CBE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ET01J6CBE2?
C&K COMPONENTS
