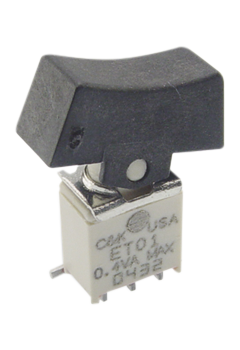

C&K COMPONENTS ET02J1CBE2 Sealed Rocker Switch
The C&K Components ET02J1CBE2 is a sealed subminiature rocker switch engineered for demanding applications requiring a compact and reliable switching solution. Its sealed design protects against contaminants, making it ideal for use in telecommunications equipment, instrumentation panels, and computer peripherals. Constructed with glass-filled nylon 6/6 or 4/6 nylon (UL 94V-0 rated), the switch housing and bushing provide excellent flame retardancy and heat stability. The actuator is made of nylon and features an internal o-ring seal for enhanced protection. Available with various contact materials (gold, silver, matte-tin), the ET02J1CBE2 offers versatility for different electrical requirements. Its compact footprint saves valuable space, while its robust construction ensures long-term reliability.
C&K COMPONENTS ET02J1CBE2 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC
- Contact Material: Copper alloy, silver plated (Q contact material)
- Electrical Life: 30,000 cycles (all models except ETX1)
- Contact Resistance: Below 20 m Ω typ. initial
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Solderability: Per MIL-STD-202F method 208D or EIA RS-186E method 9
- Case and Bushing: Glass filled nylon 6/6 or 4/6 nylon (UL 94V-0)
- Actuator: Nylon, black standard, with internal o-ring seal
- Switch Support: Brass, matte-tin plated
- Terminal Seal: Epoxy
Buy the ET02J1CBE2 C&K COMPONENTS Sealed Rocker Switch | myMectronic
Purchase the C&K Components ET02J1CBE2 securely and efficiently to meet your project needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS ET02J1CBE2?
You can click on the BUY or RFQ button to purchase ET02J1CBE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ET02J1CBE2?
You can download the ET02J1CBE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ET02J1CBE2?
C&K COMPONENTS
