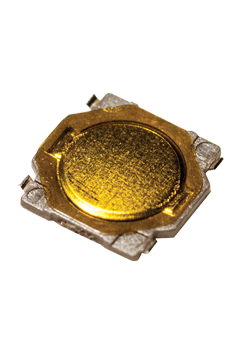

C&K COMPONENTS Y97UT25B5ACFP Ultra Low Profile Top Actuated Switch
The C&K PTS 540 series represents a compact and reliable solution for tactile switch requirements in a variety of applications. Designed as an ultra-low profile Surface Mount Technology (SMT) switch, it boasts a minimal 3.7x3.7mm footprint and a slim 0.35mm thickness, making it ideal for devices where space is at a premium. The switch offers a momentary action with a SPST (Single Pole Single Throw) Normally Open contact arrangement. Its robust design ensures a high number of cycles, contributing to its long-term reliability. Typical applications include MP3 accessories, Bluetooth headsets, and remote controls, demonstrating its versatility across consumer electronics and other portable devices. The switch is compatible with infrared reflow soldering methods, simplifying integration into manufacturing processes.
C&K COMPONENTS Y97UT25B5ACFP Ultra Low Profile Top Actuated Switch Specifications:
- FUNCTION: momentary action
- CONTACT ARRANGEMENT: 1 make contact = SPST N.O.
- TERMINALS: J type for SMT
- TRAVEL: 0.15 mm ± 0.1 mm
- OPERATING FORCE: 160± 50 gf (PTS540 JM035 SMTR LFS)
- OPERATING LIFE: 500,000 operations (PTS540 JM035 SMTR LFS)
- MAXIMUM VOLTAGE: 12 VDC
- MAXIMUM CURRENT DC: 50 mA
- DIELECTRIC STRENGTH: 250 VA C (1mn)
- CONTACT RESISTANCE: ≤ 100 mΩ
- INSULATION RESISTANCE: ≥ 100 MΩ
- BOUNCE TIME: ≤ 10 ms
- OPERATING TEMPERATURE: -30˚C to 85˚C
- FOOTPRINT: 3.7 x 3.7 mm
- THICKNESS: 0.35 mm
Buy the Y97UT25B5ACFP C&K COMPONENTS Ultra Low Profile Top Actuated Switch | myMectronic
Secure your C&K COMPONENTS Y97UT25B5ACFP today and experience reliable performance.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS Y97UT25B5ACFP?
You can click on the BUY or RFQ button to purchase Y97UT25B5ACFP from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part Y97UT25B5ACFP?
You can download the Y97UT25B5ACFP datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of Y97UT25B5ACFP?
C&K COMPONENTS
