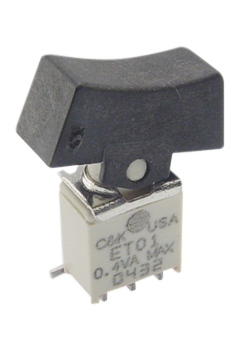

C&K COMPONENTS ET05J6CBE2 Sealed Rocker Switch
The C&K Components ET05J6CBE2 is a sealed subminiature rocker switch engineered for reliability and performance in demanding environments. Its compact footprint saves valuable space, while the sealed construction protects against contaminants. Constructed with a glass-filled nylon 6/6 case and a nylon actuator, the switch offers excellent durability and heat resistance. Typical applications include telecommunications equipment, instrumentation panels, and computer peripherals where a robust and reliable switching solution is required. The switch is RoHS compliant, meeting environmental standards. Available with various termination options and actuator colors to suit specific design requirements.
C&K COMPONENTS ET05J6CBE2 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC
- Electrical Life: 30,000 cycles (most models), 60,000 cycles (ETX1 models)
- Contact Resistance: Below 20 m Ω typ. initial
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Solderability: Per MIL-STD-202F method 208D or EIA RS-186E method 9
- Case and Bushing Material: Glass filled nylon 6/6 or 4/6 nylon (UL 94V-0)
- Actuator Material: Nylon (black standard)
- Switch Support Material: Brass, matte-tin plated
- Contact Material (B): Copper alloy, gold plate over nickel plate
- Contact Material (Q): Copper alloy, silver plated
- Terminal Seal Material: Epoxy
Buy the ET05J6CBE2 C&K COMPONENTS Sealed Rocker Switch | myMectronic
Purchase the C&K Components ET05J6CBE2 securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS ET05J6CBE2?
You can click on the BUY or RFQ button to purchase ET05J6CBE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ET05J6CBE2?
You can download the ET05J6CBE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ET05J6CBE2?
C&K COMPONENTS
