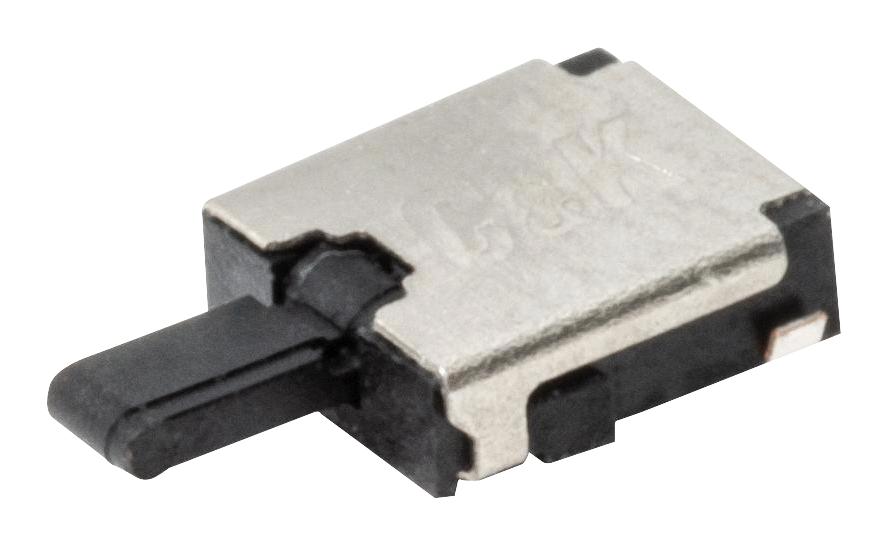

C&K COMPONENTS FDSD001R Detect Switch
The FDSD series consists of micro mini side actuated detect switches designed for precise activation in compact forms. Featuring vertical side actuation and options for flat or bending terminations, these switches are suitable for consumer electronics, medical devices, and safety control systems. They offer a contact rating of 50 pA @ 3VDC and 10 mA @ 5 VDC, with a mechanical and electrical lifespan of 50,000 operations. Made with durable materials, they provide reliable insulation resistance and dielectric strength with a compact profile suitable for tight spaces.
C&K COMPONENTS FDSD001R Detect Switch Specifications:
- Contact Rating: 50 pA @ 3VDC, 10 mA @ 5 VDC
- Mechanical & Electrical Life: 50,000 operations
- Contact Resistance: 1Ω max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: 100VAC @ 1 minute
- Operating Temperature: -10°C to +60°C
- Operating Force: 40gf max
- Travel: 3.05 mm or 60°
- Solderability: According to lead-free solder profiles
- Materials: Base – PAST, Cover – C7701R, Actuator – PA 46, Movable Contact – Beryllium Copper, Terminals – Phosphor Bronze, Ag over Ni Plating
- Packaging: 3,500 pieces per reel
Buy the Ckswitches FDSD001R – Reliable Detect Switch for Industrial Applications
Purchase the Ckswitches FDSD001R detect switch online today for reliable, long-lasting performance in compact electronic and safety applications. Designed with a small package size and high durability, this switch offers a contact rating of 50 pA @ 3VDC and an electrical life of 50,000 operations. Its versatile side actuation with flat or bent terminal options makes it suitable for precision device integration. Built with RoHS compliance and high-quality materials, ensure your system's safety and performance by ordering online now.
Get Ckswitches FDSD001R today—built for precision, durability, and compact design in sensing and safety devices.
Frequently Asked Questions
Where can I buy C&K COMPONENTS FDSD001R?
You can click on the BUY or RFQ button to purchase FDSD001R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part FDSD001R?
You can download the FDSD001R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of FDSD001R?
C&K COMPONENTS
