C&K COMPONENTS PNP8E3D2C03QE Sealed Pushbutton Switch
The PNP Series sealed pushbutton switch features snap-action for positive tactile feedback, IP68 sealing for durability in harsh environments, and a high operating life of 1,000,000 cycles. It supports resistive loads up to 5A, with options for various housing styles, terminal types, and wire lead configurations. Designed for industrial and heavy equipment applications, this switch offers reliable performance with a snap-action mechanism, high durability, and RoHS compliance, making it suitable for control panels, lifts, conveyor controls, and off-road machinery.
C&K COMPONENTS PNP8E3D2C03QE Sealed Pushbutton Switch Specifications:
- FUNCTION: SPST, SPDT Double Break (Form Z) Momentary
- CONTACT ARRANGEMENT: N.O. and N.C.
- MOUNTING TYPE: Threaded front mount
- OPERATING LIFE: 1,000,000 cycles
- TOTAL TRAVEL: 2 mm max.
- OPERATING POINT: 0.9 + 0.25 mm
- OVER TRAVEL: 0.25 mm min.
- OPERATING FORCE: 3N + 1.5N, 8N + 1.5N
- VIBRATION: 10-500 Hz, 10g Max
- SHOCK: 50g, 11ms sawtooth wave
- CONTACT RATING: 5A/32 VDC resistive (Option Q), 10mA/5 VDC resistive (Option G)
- DIELECTRIC STRENGTH: 1000 V AC for 1 min.
- INSULATION RESISTANCE: 1 GΩ @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max
- OPERATING TEMPERATURE: -40°C to +85°C
- SEALING: IP68
- HOUSING: PBT/PC
- ACTUATOR: PBT
- TERMINALS: Copper with silver nickel inlay, silver plating
- MOVABLE CONTACT: Copper alloy, gold over silver plating
- Internal Seal: Silicone rubber

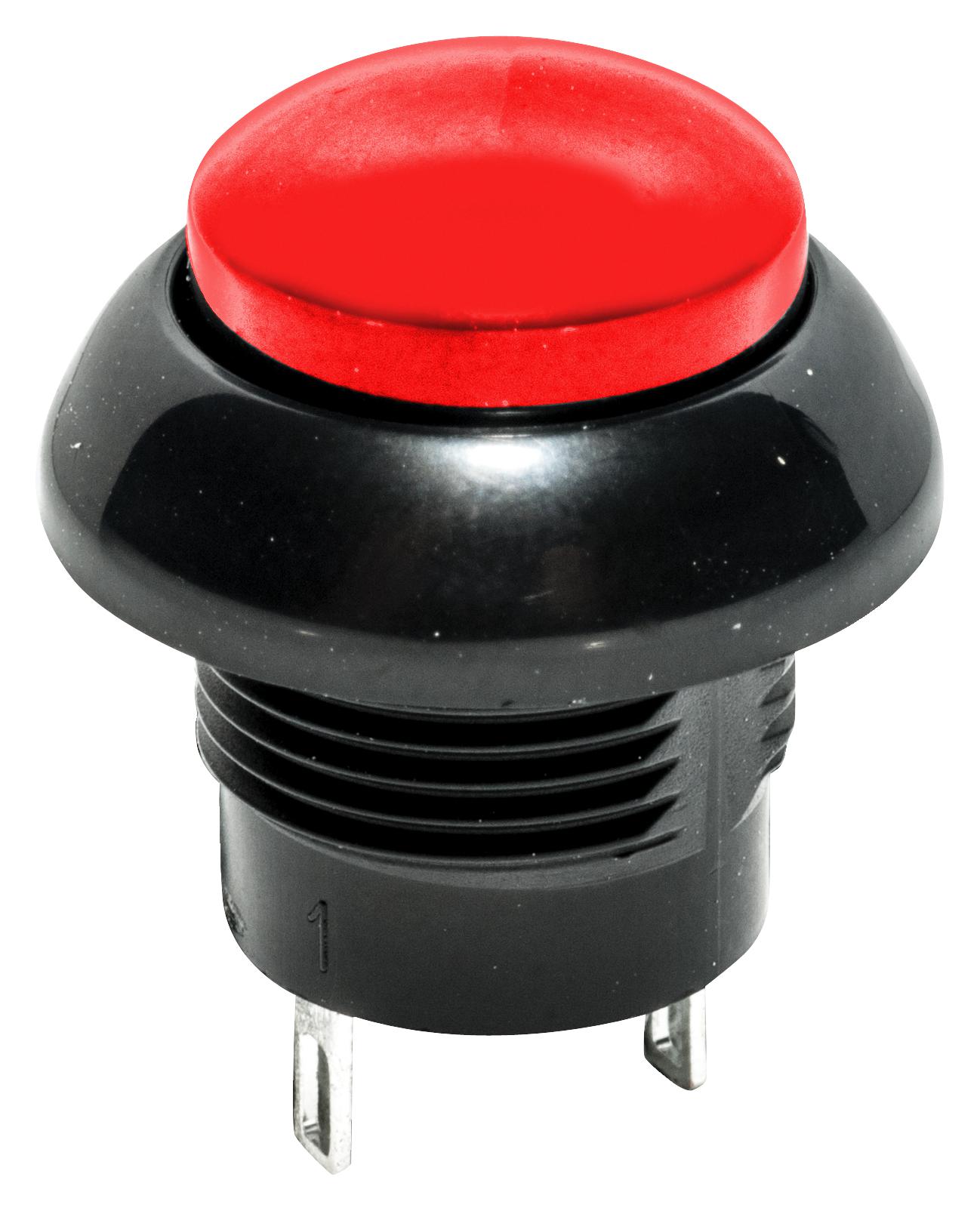

Buy the Buy CKS PNP Series Sealed Pushbutton Switch Part Number PNP8E3D2C03QE Online
Experience dependable performance with the CKS PNP Series sealed pushbutton switch. Featuring IP68 sealing, snap-action tactile feedback, and a lifespan of 1,000,000 cycles, it is perfect for industrial equipment, control panels, and heavy machinery. Its resistive load capacity up to 5A ensures reliable switching, while various styles and terminal options provide versatile installation. Made with durable materials, this switch withstands harsh environments and temperature ranges from -40°C to +85°C, making it ideal for demanding applications worldwide.
Order your CKS PNP Series PNP8E3D2C03QE sealed pushbutton switch today and enhance your industrial control systems with reliable, IP68-rated protection.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PNP8E3D2C03QE?
You can click on the BUY or RFQ button to purchase PNP8E3D2C03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PNP8E3D2C03QE?
You can download the PNP8E3D2C03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PNP8E3D2C03QE?
C&K COMPONENTS
