C&K COMPONENTS ILSTB18050 LED Tact Switch
The ILS Series integrated LED tact switch features a compact design suitable for consumer electronics, health devices, and audio/video control boards. It offers multiple LED color options, high durability with 100,000 life cycles, and various height and actuation force configurations. With a travel distance of 0.25 mm and operating temperature range from -40°C to +85°C, this switch provides reliable electrical performance with a rating of 100mA @ 30VDC, making it ideal for modern electronic applications that demand durability, visual indication, and high performance.
C&K COMPONENTS ILSTB18050 LED Tact Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC, 10pA min. @ 1VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC (50-60 Hz 2mA) for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Bulk Packaging: 500 pieces per bag, 2 bags per carton
- Note: All caps are not recommended for soldering process

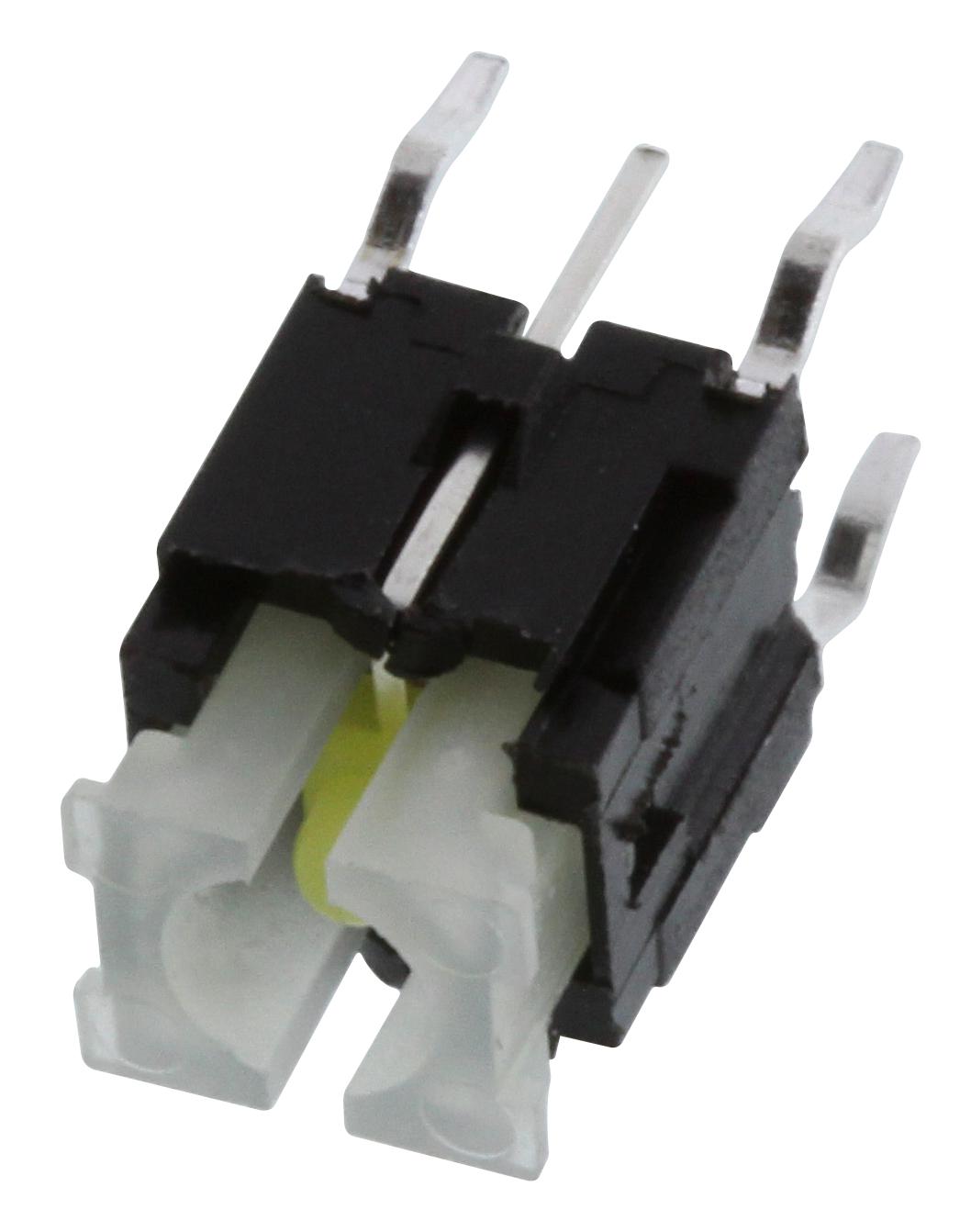

Buy the CK Switches Series ILS LED Tact Switch: ILSTB18050
Enhance your electronic designs with the high-quality CK Switches Series ILS LED tact switch. Featuring various LED colors, multiple height options, and a rugged life cycle of 100,000 operations, this switch is perfect for consumer electronics, medical devices, and test equipment. Its compact size, low travel of 0.25 mm, and strong electrical ratings ensure reliable performance in demanding environments. Easily customizable with optional caps and configurations, it provides both visual appeal and dependable switching for your professional projects.
Order your CK Switches Series ILS ILSTB18050 today and give your electronic projects the reliable, durable switch performance they need.
