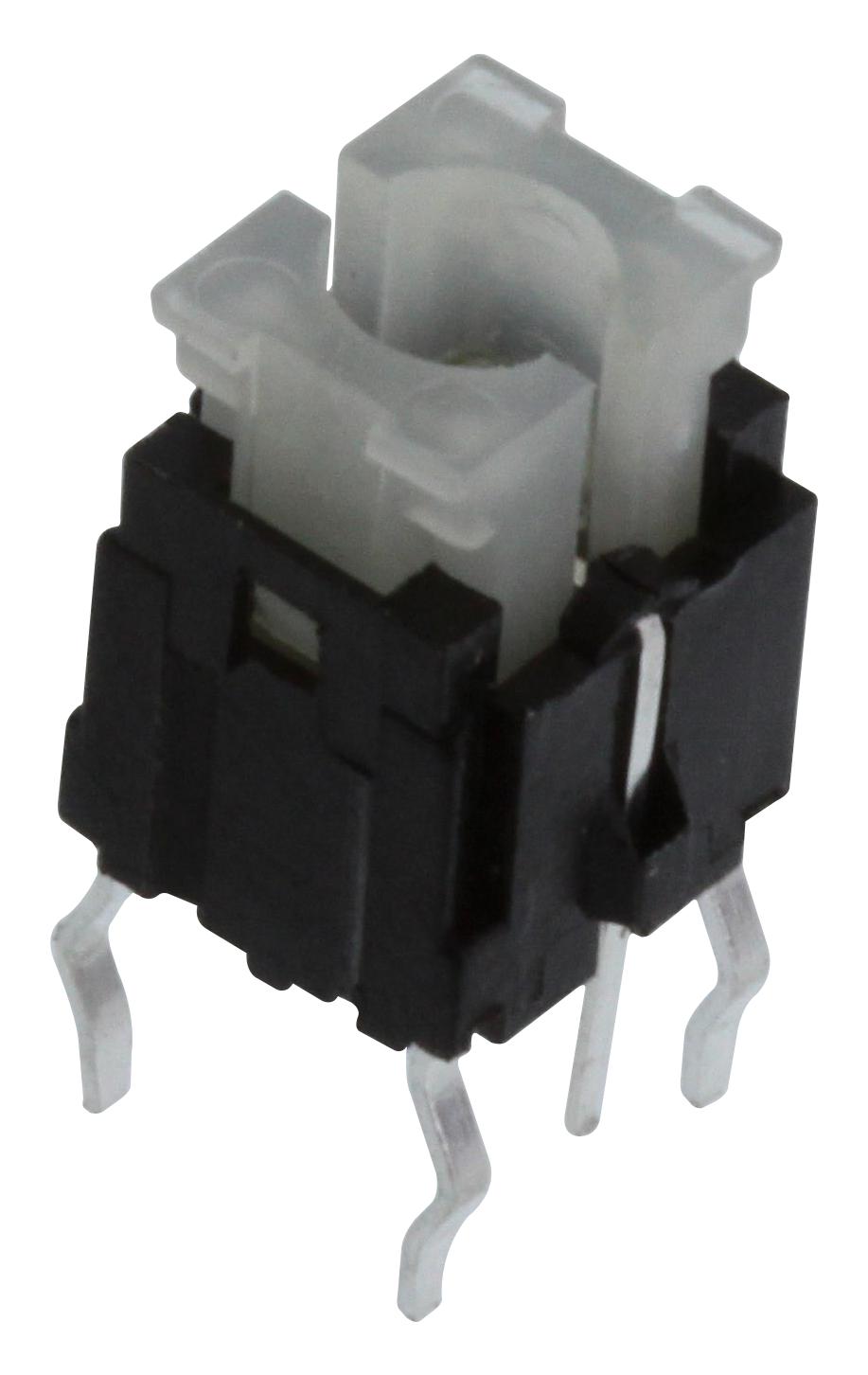

C&K COMPONENTS ILSTB25030 Tactile Switch
The ILS Series integrated LED tactile switch offers a compact and reliable switching solution suitable for consumer electronics, health monitoring devices, test and measurement equipment, and audio/video control boards. It features a 0.25 mm travel, high cycle life of 100,000 operations, and a rated voltage of 30VDC at 100mA max. With various LED color options, multiple height options, and a mechanical operating temperature range from -40°C to +85°C, the switch ensures durability and versatile application in user-interface control panels.
C&K COMPONENTS ILSTB25030 Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1mm
- Operating Life: 100,000 cycles
- Rated Voltage: 30VDC
- Rated Current: 100mA max.
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC (50-60 Hz 2mA) for 1 min
- Bounce Time: ON/OFF 5 ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Material: Tactile switch with integrated LED
- Physical Dimensions: Height options TA 7.20 mm, TB 8.50 mm, TC 7.00 mm
- LED Characteristic Power Dissipation: 18-120 mW depending on color
- LED Forward Current: 5-30 mA
- LED Operating Temperature Range: -40°C to +85°C
- Materials: Copper contact, durable plastic housing
Buy the CK Switches ILSTB25030 – Reliable Tactile Switch for Industrial Applications
Discover the high-performance CK Switches series ILSTB25030 tactile switch, designed for durability, versatility, and ease of integration into various electronics. With a compact form factor, multiple LED color options, and an operating life of 100,000 cycles, this switch is perfect for consumer gadgets, control panels, and measurement devices. Its low contact resistance, broad temperature range, and reliable dielectric withstand voltage make it an ideal choice for demanding applications. Purchase online today and enhance your electronic projects with trusted quality and innovative design.
Order your CK Switches series ILSTB25030 tactile switch today and equip your devices with dependable, high-quality user-interface components.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTB25030?
You can click on the BUY or RFQ button to purchase ILSTB25030 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTB25030?
You can download the ILSTB25030 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTB25030?
C&K COMPONENTS
