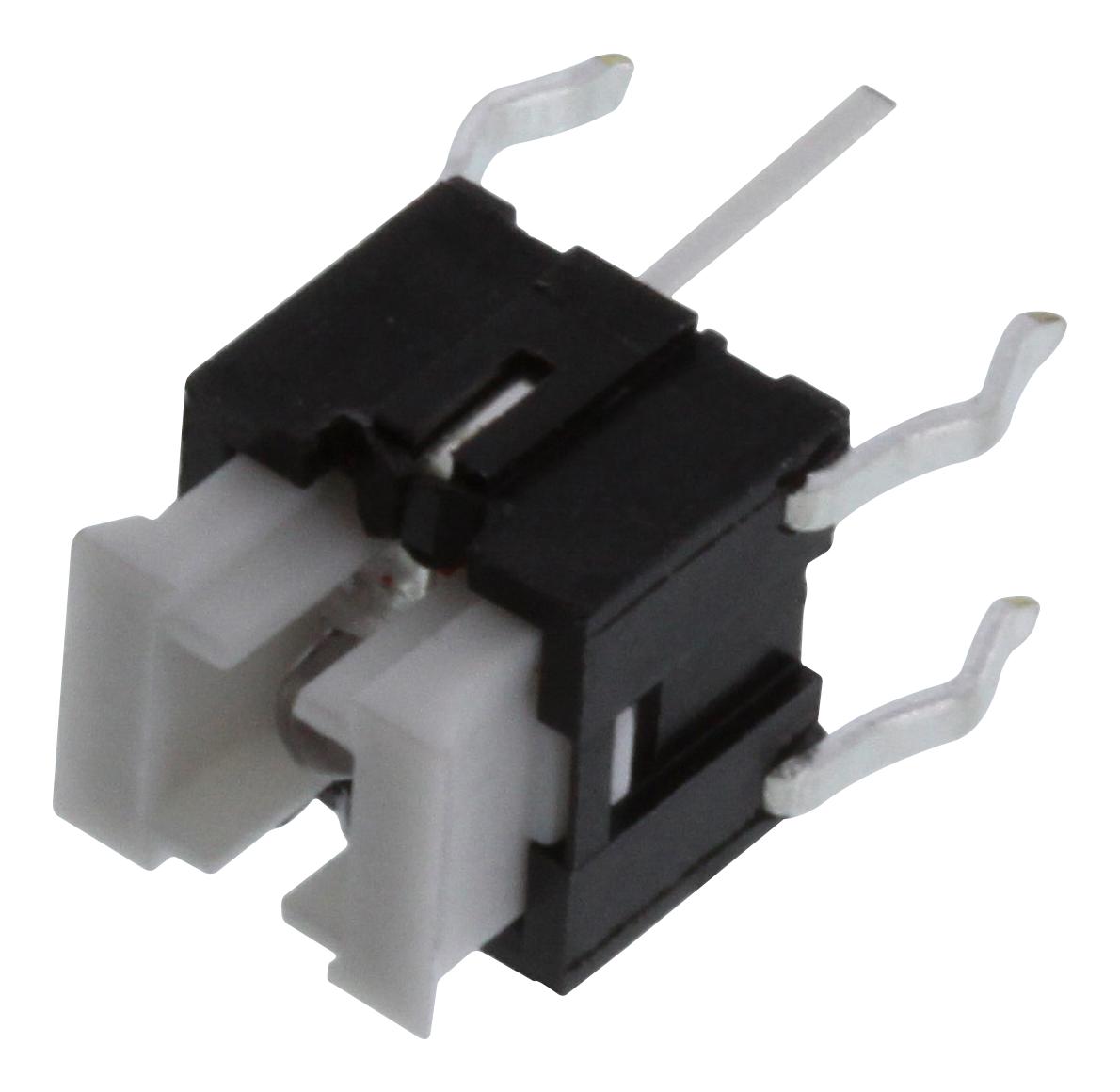

C&K COMPONENTS ILSTA18010 Integrated LED Tactile Switch
The ILS Series is a compact integrated LED tactile switch designed for versatile electronic applications such as consumer electronics, health monitoring devices, test and measurement, and audio/video control boards. It features multiple LED color options, high cycle durability of 100,000 operations, and a small travel distance of 0.25 mm. Available in various heights and actuation forces, these switches ensure reliable operation across a broad temperature range from -40°C to +85°C. Their sturdy construction and flexible configuration options make them suitable for numerous industrial and consumer electronic uses, emphasizing longevity and consistent performance.
C&K COMPONENTS ILSTA18010 Integrated LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC, 10pA min. @ 1VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Packaging: Bulk in bags of 500 pieces, two bags per carton
- Mechanical actuation force options: 180gf or 250gf
- LED Options: Red, Yellow/Green, Blue, White, Green
- LED Power Dissipation: 52-120 mW depending on color
- Max Forward Voltage: 2.3-3.6 V
- Viewing Angle: 35°
- Dimensions vary based on style, height, and configuration
Buy the CKSwitches ILSTA18010 – Reliable Tactile Switch for Industrial Applications
Discover the advanced reliability of the CKSwitches Integrated LED Tactile Switch. Designed with durability and versatility in mind, it features multiple LED colors, various actuation forces, and compact sizes suitable for consumer electronics, measurement tools, and control systems. With an operational life of 100,000 cycles and operation from -40°C to +85°C, it ensures consistent performance under demanding conditions. Available in bulk for easy online purchase, it’s the ideal component for engineers seeking quality tactile switches for their innovative projects.
Order your CKSwitches Series ILSTA18010 tactile switch today and benefit from dependable switching performance ideal for various electronic devices and industrial systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTA18010?
You can click on the BUY or RFQ button to purchase ILSTA18010 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTA18010?
You can download the ILSTA18010 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTA18010?
C&K COMPONENTS
