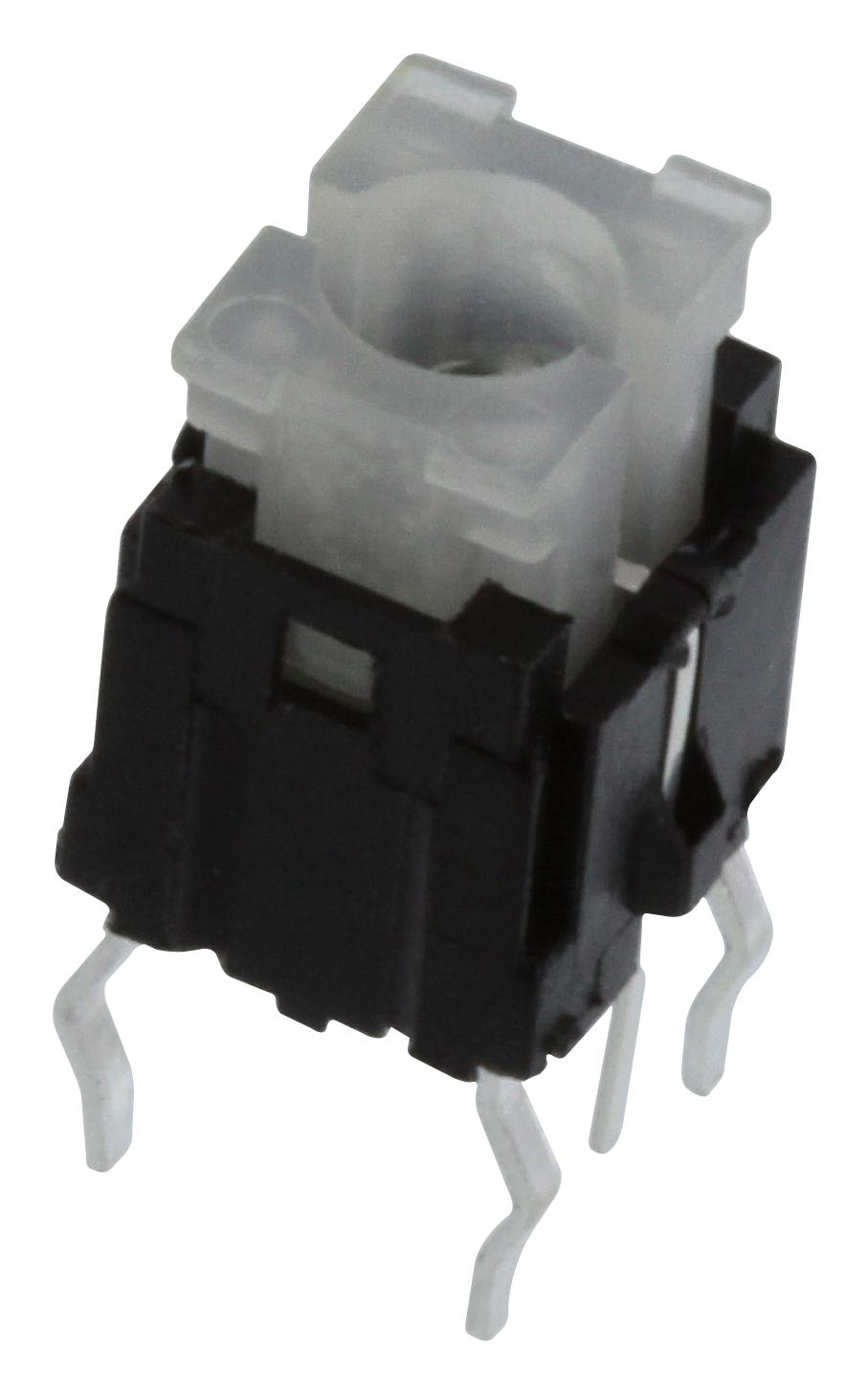

C&K COMPONENTS ILSTB25060 LED Tactile Switch
The integrated LED tactile switch features a compact design suitable for consumer electronics, health monitoring, and test equipment. Offering high durability with 100,000 cycles, it has a travel of 0.25 mm and electrical ratings up to 100mA @ 30VDC. Available in various heights, LED colors, and actuation forces, it supports operating temperatures from -40°C to +85°C. The switch incorporates multiple LED options, excellent insulation resistance, and dielectric withstand voltage, making it reliable for industrial and electronic applications. Packaging includes bulk 500-piece bags, with customizable build options for specific needs.
C&K COMPONENTS ILSTB25060 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Mechanical Operating Life: 100,000 cycles
- Electrical Rating: 100mA max. @ 30VDC, 10pA min. @ 1VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC (50-60 Hz 2mA) for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Physical Dimensions: heights 7.00 mm, 7.20 mm, 8.50 mm; LED colors include Red, Yellow/Green, Blue, White, Green
- LED Forward Voltage: varies by color (2.3V to 3.6V at 5mA); Forward Current: 5-30mA; Peak Wavelengths: 460-644 nm
- Voltage Rating: 30VDC, 100mA maximum
- Construction: THT mounting, various actuation forces (180gf, 250gf)
- Environment: Suitable for -40°C to +85°C operating and storage conditions
- Packaging: Bulk, 500 pieces per bag, two bags per carton
Buy the Ck Switches ILSTB25060 – Reliable LED Tactile Switch for Industrial Applications
Order the Ck Switches LED Tactile Switch online today to enjoy high quality, reliable operation, and customizable features like LED color and height. Perfect for consumer electronics, health devices, and test equipment, this switch supports high cycles with durable construction. With a compact size of 7 to 8.5 mm height options, it offers excellent electrical ratings and environmental stability. Purchase now to enhance your electronic projects with a switch designed for long-lasting performance and versatile application needs, all available for fast online delivery.
Get Ck Switches ILSTB25060 today—built for precision, durability, and customizable options for electronic control modules.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTB25060?
You can click on the BUY or RFQ button to purchase ILSTB25060 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTB25060?
You can download the ILSTB25060 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTB25060?
C&K COMPONENTS
