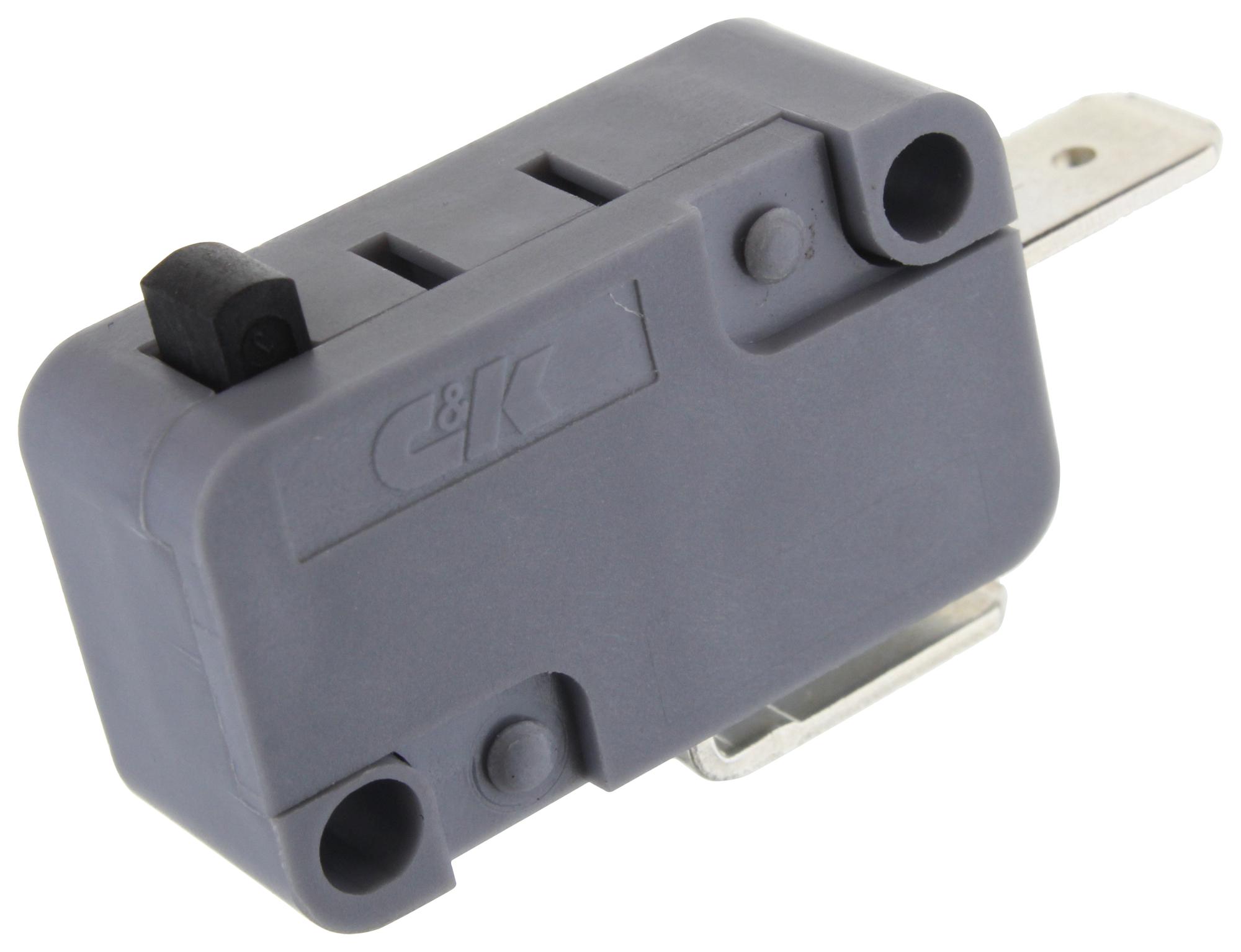

C&K COMPONENTS TF325CFT1540Y Miniature Snap-Acting Switch
The TF3 Series miniature snap-acting switches are designed for full disconnection with a gap greater than 3 mm, suitable for diverse industrial applications. They support ratings up to 25 amps at 125/250 V AC, with an electrical life of 10,000 cycles and a mechanical life of 500,000 cycles. Made with durable PBT housing and a nylon actuator button, these switches operate reliably from -40°C to 125°C. They feature various actuator styles and quick connect terminations, ideal for power tools, motor controls, and HVAC systems, ensuring safety and long-term performance.
C&K COMPONENTS TF325CFT1540Y Miniature Snap-Acting Switch Specifications:
- CONTACT RATING: 10A to 25A @ 125/250 V AC
- ELECTRICAL LIFE: 10,000 cycles
- MECHANICAL LIFE: 500,000 cycles
- INSULATION RESISTANCE: 100 M ohm min.
- DIELECTRIC STRENGTH: 1,500 Vrms min. @ sea level
- OPERATING TEMPERATURE: -40°C to 125°C
- OPERATING FORCE: Refer to chart for lever style forces
- MOUNTING Torque screws 2-5 in/Ibs.
- SWITCH HOUSING: PBT
- ACTUATOR BUTTON: Nylon
- MOVABLE CONTACTS: Silver Alloy
- MOVABLE BLADE: Copper Alloy
- STATIONARY CONTACTS: Silver Alloy
- TERMINALS: Copper
Buy the Buy Industry-Grade Snap-Acting Switch Part Number TF325CFT1540Y Online
Purchase the TF3 Series miniature snap-acting switch TF325CFT1540Y online today and benefit from durable construction, versatile actuator styles, and quick connect terminals. Designed for full disconnection with a gap greater than 3 mm, it supports ratings up to 25 amps at 125/250 V AC, making it ideal for power tools, motor controls, and HVAC systems. With an operating temperature range of -40°C to 125°C, high cycles of electrical and mechanical endurance, and copper and silver alloy contacts, this switch guarantees long-lasting, safe, and dependable operation in demanding environments.
Buy TF3 Series snap-acting switch TF325CFT1540Y now and experience reliable switching performance for industrial applications, motor controls, and HVAC systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TF325CFT1540Y?
You can click on the BUY or RFQ button to purchase TF325CFT1540Y from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TF325CFT1540Y?
You can download the TF325CFT1540Y datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TF325CFT1540Y?
C&K COMPONENTS
