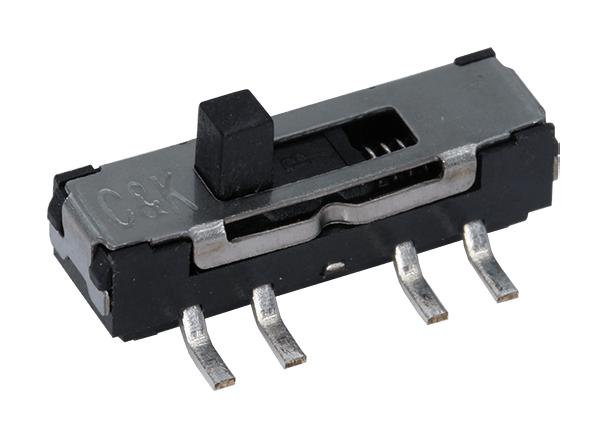

C&K COMPONENTS JS203011SCQN Sub-Miniature Slide Switch
The sub-miniature slide switch features a low profile design, positive detent, and supports IR reflow soldering at 260°C. It offers surface and thru-hole mounting options with various configurations including SPDT, DPDT, and DP3T. Made with durable nylon housing and copper alloy contacts with silver plating, it supports applications in telecommunication, instrumentation, medical devices, and computer peripherals. Operating temperature ranges from -40°C to +85°C, ensuring reliable performance in diverse environments, along with RoHS compliance and high electrical reliability for long-term use.
C&K COMPONENTS JS203011SCQN Sub-Miniature Slide Switch Specifications:
- CONTACT RATING: 6 VDC @ 0.3A
- ELECTRICAL LIFE: 5,000 make-and-break cycles
- CONTACT RESISTANCE: 70 mΩ max.
- INSULATION RESISTANCE: 100 MΩ min. @ 500 V
- DIELECTRIC STRENGTH: 500 VAC min.
- OPERATING TEMPERATURE: -40°C to +85°C
- STORAGE TEMPERATURE: -40°C to +85°C
- HOUSING MATERIAL: 4/6 nylon (UL94V-2), black
- ACTUATOR MATERIAL: nylon (UL94V-2), black or white options
- CONTACTS: Copper alloy, silver plated
- TERMINALS: Brass, silver plated
Buy the Buy CKSwitches Sub-Miniature Slide Switch Part Number JS203011SCQN Online
Purchase the CKSwitches Sub-Miniature Slide Switch online today for precision performance and durable reliability. Its low profile design, multiple configurations including SPDT, DPDT, and DP3T, and RoHS compliance make it ideal for telecom, medical, instrumentation, and computer peripherals. Made with high-quality nylon housing and silver-plated copper contacts, it supports IR reflow soldering at 260°C, operating from -40°C to +85°C. Ensure your application’s success with this reliable, compact switch known for its longevity and excellent electrical characteristics.
Get CKSwitches JS203011SCQN today—built for precision and long-lasting durability with reliable performance in varied environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS JS203011SCQN?
You can click on the BUY or RFQ button to purchase JS203011SCQN from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part JS203011SCQN?
You can download the JS203011SCQN datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of JS203011SCQN?
C&K COMPONENTS
