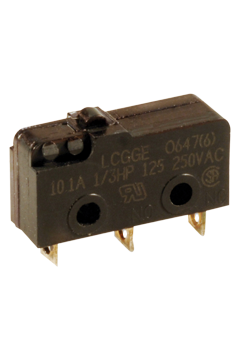

C&K COMPONENTS LCGGM1T20EYE Snap-Acting Precision Switch
The C&K COMPONENTS LCGGM1T20EYE is a subminiature precision snap-acting switch offering a compact design and robust performance. It's engineered for long life and high electrical capacity, making it suitable for a variety of applications. The switch provides quick connect options for easy integration and supports wire lead or PC mounting. Available with a wide range of actuator styles, it caters to diverse design requirements. Typical applications include motorized equipment, sump pumps, and thermostatic controls. Constructed with thermoplastic polyester or high-temperature thermoplastic housing, copper alloy pivot and contacts, and epoxy terminal seal, this switch ensures reliable operation in demanding environments.
C&K COMPONENTS LCGGM1T20EYE Snap-Acting Precision Switch Specifications:
- Contact Rating: From low level to 10.1 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles
- Insulation Resistance: 1,000 M ohm min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -17ºF to 185ºF (-25ºC to 85ºC)
- Operating Force: From 142 to 170 grams at actuator button
- Mounting: 2-56 screws, torque 2.3 in/lbs max.
- Switch Housing: Thermoplastic polyester or high temperature thermoplastic (PTS) (UL 94V-0)
- Actuator Button: Thermoplastic polyester (UL 94V-0)
- Spring: Copper alloy
- Pivot: Copper alloy
- Movable Contacts: Fine silver for ratings greater than 1 AMP @ 125 V AC; Fine silver with 24K gold plate for 1 AMP @ 125 V AC or less
- Stationary Contacts: Fine silver welded on copper alloy for ratings greater than 1 AMP @ 125 V AC; Gold alloy welded on copper alloy for ratings less than 1 AMP @ 125 V AC
- Terminals: Copper alloy
- Terminal Seal: Epoxy
Buy the LCGGGM1T20EYE C&K COMPONENTS Snap-Acting Precision Switch | myMectronic
Purchase the C&K COMPONENTS LCGGM1T20EYE securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS LCGGM1T20EYE?
You can click on the BUY or RFQ button to purchase LCGGM1T20EYE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part LCGGM1T20EYE?
You can download the LCGGM1T20EYE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of LCGGM1T20EYE?
C&K COMPONENTS
