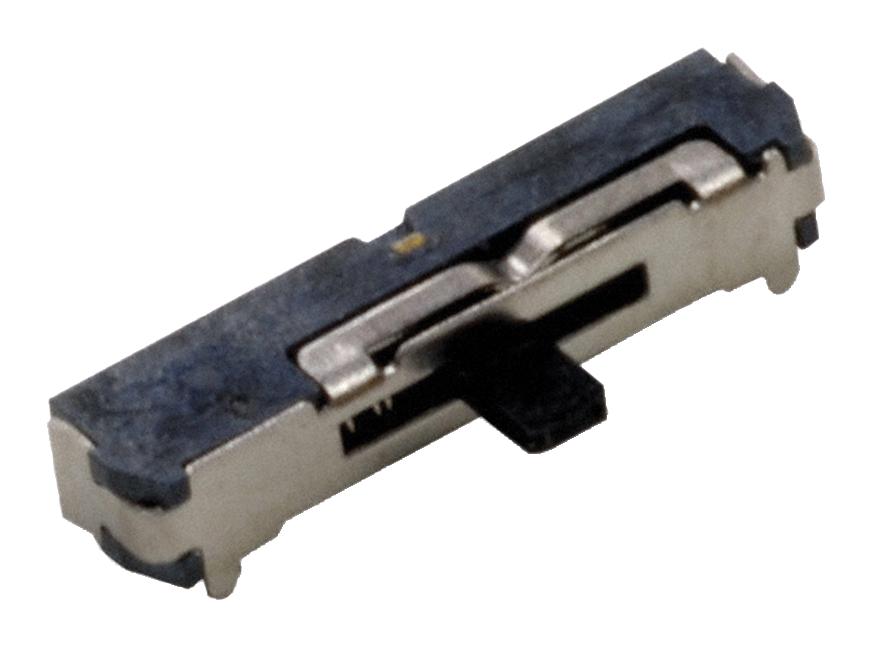

C&K COMPONENTS JSM07011SAQNL Sub-Miniature Slide Switch
The JSM series sub-miniature slide switches are compact, high-reliability surface mount or through-hole devices ideal for telecommunication, instrumentation, and control applications. They feature SPDT and SP3T options, with a contact rating of 4 VDC at 0.3A, and an electrical life of 10,000 cycles. The switches are RoHS compliant, halogen-free, with stainless steel covers, and operate within -10°C to +60°C. Suitable for applications needing low profile, precision, and durability in various electronic systems.
C&K COMPONENTS JSM07011SAQNL Sub-Miniature Slide Switch Specifications:
- Contact Rating: 4 VDC @ 0.3A
- Electrical Life: 10,000 cycles at full load
- Contact Resistance: 70 mΩ max
- Insulation Resistance: 100 MΩ min @ 500V
- Dielectric Strength: 100 VAC min
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -30°C to +85°C
- Housing: LCP, Glass filled, halogen free
- Actuator: 4/6 nylon, black
- Contacts: Beryllium copper, silver plated
- Terminals: Brass, silver plated
- Cover and Spring: Stainless steel
- Mounting Style: Surface and thru hole
- Size: Very compact, low profile design
Buy the RoHS compliant Series JSM Sub-Miniature Slide Switches: JSM07011SAQNL
Order the JSM07011SAQNL sub-miniature slide switch online today to ensure your electronic projects benefit from high quality, durability, and precise switching performance. These switches provide reliable operation in space-constrained designs, suitable for telecommunication, instrumentation, and control systems. With a rated 4 VDC at 0.3A, an electrical life of 10,000 cycles, and RoHS compliance, they are ideal for high-demand industrial applications. Experience seamless installation and long-lasting performance when purchasing through our online store.
Buy RoHS compliant JSM07011SAQNL switch and enjoy reliable performance for telecommunication and instrumentation projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS JSM07011SAQNL?
You can click on the BUY or RFQ button to purchase JSM07011SAQNL from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part JSM07011SAQNL?
You can download the JSM07011SAQNL datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of JSM07011SAQNL?
C&K COMPONENTS
