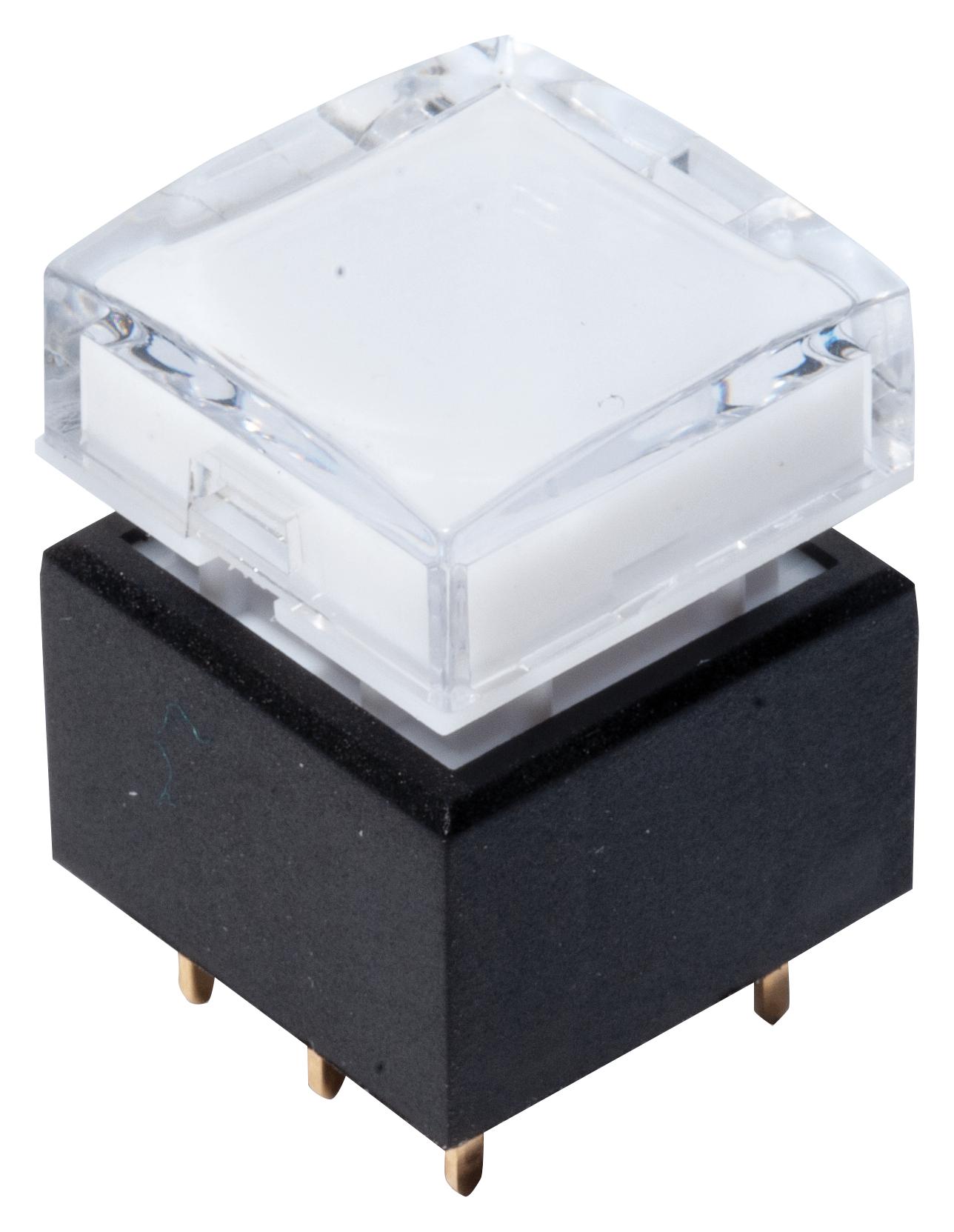

C&K COMPONENTS KLS12C036AQ Illuminated Pushbutton Switch
The illuminated SPDT and DPDT pushbutton switches offer reliable tactile feedback and are available in momentary or lock versions. They feature gold or silver contacts, various cap styles and colors, and LED illumination options. Suitable for audio/video systems, vending machines, kiosks, and network equipment, these switches have a mechanical life of 1,000,000 cycles, an operating force of 200-300 grams-force, and operate within -40°C to +85°C. Designed with durable materials, they provide high electrical ratings and secure PCB mounting, ensuring long-term performance in industrial applications.
C&K COMPONENTS KLS12C036AQ Illuminated Pushbutton Switch Specifications:
- FUNCTION: SPDT, DPDT
- CONTACT ARRANGEMENT: N.C.
- MOUNTING TYPE: Straight PCB terminals
- OPERATING LIFE: 1,000,000 cycles (mechanical), 200,000 cycles (electrical)
- TOTAL TRAVEL: 2.2 mm
- OPERATING FORCE: 200-300 gf
- CONTACT RATING: See contact material table
- DIELECTRIC STRENGTH: 1,000 V AC for 1 min
- INSULATION RESISTANCE: 100 MΩ min. @ 500 VDC
- INITIAL CONTACT RESISTANCE: Max 50 mΩ (silver contact), Max 100 mΩ (gold contact)
- OPERATING TEMPERATURE: -40°C to +85°C
- CASE MATERIAL: PAG6+70G33L (Black)
- ACTUATOR MATERIAL: POM (White)
- CAP MATERIAL: PC
- SPRING: Stainless steel
- TERMINALS / CONTACT: Brass / Copper with silver or gold plating
- TERMINAL SEAL: Epoxy
Buy the CKSwitches KLS12 – Reliable Momentary for Industrial Applications
Order the CKSwitches illuminated pushbutton switch online today and enjoy quick delivery, high durability, and versatile options including LED illumination, various cap styles, and contact materials. Perfect for industrial control panels, vending machines, and network equipment, these switches ensure long-lasting performance with a mechanical life of 1,000,000 cycles and reliable electrical ratings. Their robust construction withstands temperatures from -40°C to +85°C. Secure your emergency stop, start, or control functions by purchasing these high-quality switches now through our easy online platform.
Buy CKSwitches KLS12 now and experience unmatched reliability and performance in industrial automation and control systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KLS12C036AQ?
You can click on the BUY or RFQ button to purchase KLS12C036AQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KLS12C036AQ?
You can download the KLS12C036AQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KLS12C036AQ?
C&K COMPONENTS
