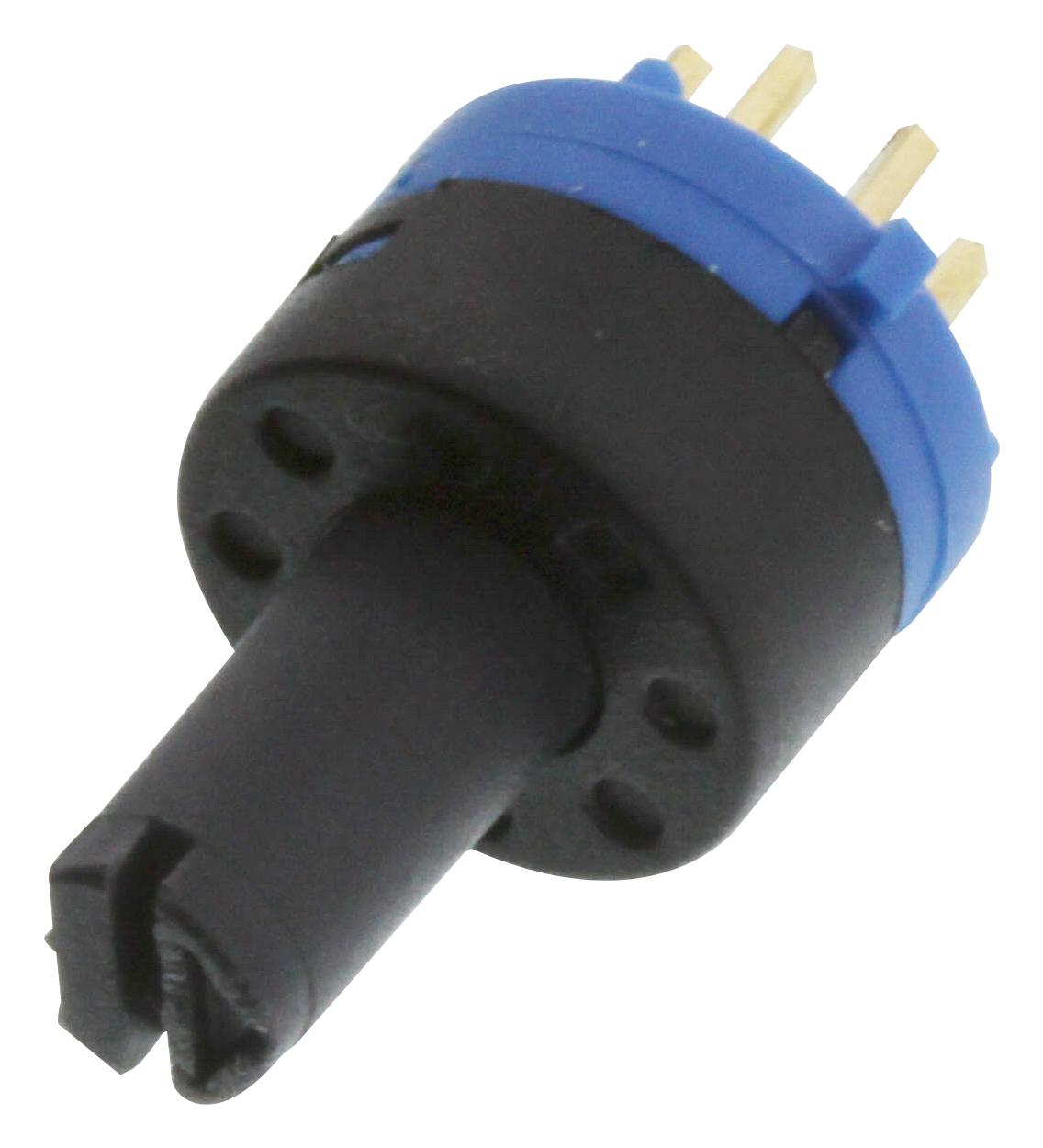

C&K COMPONENTS RM105772BCB Subminiature Rotary Switch
The RM Series subminiature rotary switches are space-saving components designed for small electronic devices. They feature a 45° index with multiple positions, positive detent, and RoHS compliance. Made with brass contacts gold-plated over nickel and durable PA66 and PA6T bodies, these switches operate reliably at -40°C to 85°C. Suitable for audio, visual, consumer electronics, and telecom applications, they offer a compact design, extended shaft options, and simple switch configuration options for precise control.
C&K COMPONENTS RM105772BCB Subminiature Rotary Switch Specifications:
- Contact Rating: 0.5A 24 V DC; 0.2A 48 V DC
- Materials: Cover made of PA66, base of PA6T
- Contact Material: Brass with gold plate over nickel plate
- Operating Life: 2,000 cycles
- Insulation Resistance: 100 MΩ min. 500 V DC
- Dielectric Strength: 500 V AC for 1 minute
- Operating Force: 270 + 100 gf cm
- Operating Temperature: -40°C to 85°C
- Actuator Material: PA66
- Dimensions: Approx. 7.7 mm high, flatted with screwdriver slot, available also in flush and extended actuator options
- Switch Function: 8-pos, 1-pos + Off, 2-pos, 3-pos, etc.
- RoHS Compliant
Buy the CK Switch Series Rotary Switch: RM105772BCB
Order CK Switch RM105772BCB online today to enhance your electronic devices with high-quality, space-saving rotary switches. These compact switches feature multiple positions, gold-plated contacts, and reliable operation across a wide temperature range. Ideal for audio, visual, consumer electronics, and telecom equipment, they ensure precise control and durability. With easy configuration options and RoHS compliance, purchasing online guarantees fast delivery and competitive pricing for your manufacturing or repair needs.
Buy CK Switch RM105772BCB now and experience unmatched reliability and performance with space-efficient rotary control switches.
Frequently Asked Questions
Where can I buy C&K COMPONENTS RM105772BCB?
You can click on the BUY or RFQ button to purchase RM105772BCB from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part RM105772BCB?
You can download the RM105772BCB datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of RM105772BCB?
C&K COMPONENTS
