C&K COMPONENTS KLS12L063AQ Illuminated Control Pushbutton
The illuminated SPDT and DPDT pushbutton switches offer positive tactile feedback with options for momentary or lock functions. They feature gold or silver contacts, multiple cap styles and sizes, and LED illumination in various colors, making them ideal for audio/video systems, vending machines, kiosks, and network equipment. These switches have a mechanical life of 1,000,000 cycles, electrical ratings up to 250V, and operate reliably between -40°C and +85°C. Constructed from durable materials such as brass, copper, and plastic, they ensure long-lasting performance and versatile installation options.
C&K COMPONENTS KLS12L063AQ Illuminated Control Pushbutton Specifications:
- FUNCTION: SPDT, DPDT
- CONTACT ARRANGEMENT: N.C.
- MOUNTING TYPE: Straight PCB terminals
- OPERATING LIFE: 1,000,000 cycles
- TOTAL TRAVEL: 2.2 mm
- OPERATING FORCE: 200 ± 100 gf (SPDT), 300 ± 150 gf (DPDT)
- CONTACT RATING: Up to 250V, 0.5A to 4100 mA depending on contact material
- DIELECTRIC STRENGTH: 1,000 V AC for 1 min
- INSULATION RESISTANCE: 100 Mohm min at 500 VDC
- INITIAL CONTACT RESISTANCE: ≤50 mΩ (silver) / ≤100 mΩ (gold)
- CASE MATERIAL: PAG6+70G33L (Black)
- ACTUATOR: POM (White)
- CAP: PC
- SPRING: Stainless steel
- OPERATING TEMPERATURE: -40°C to +85°C

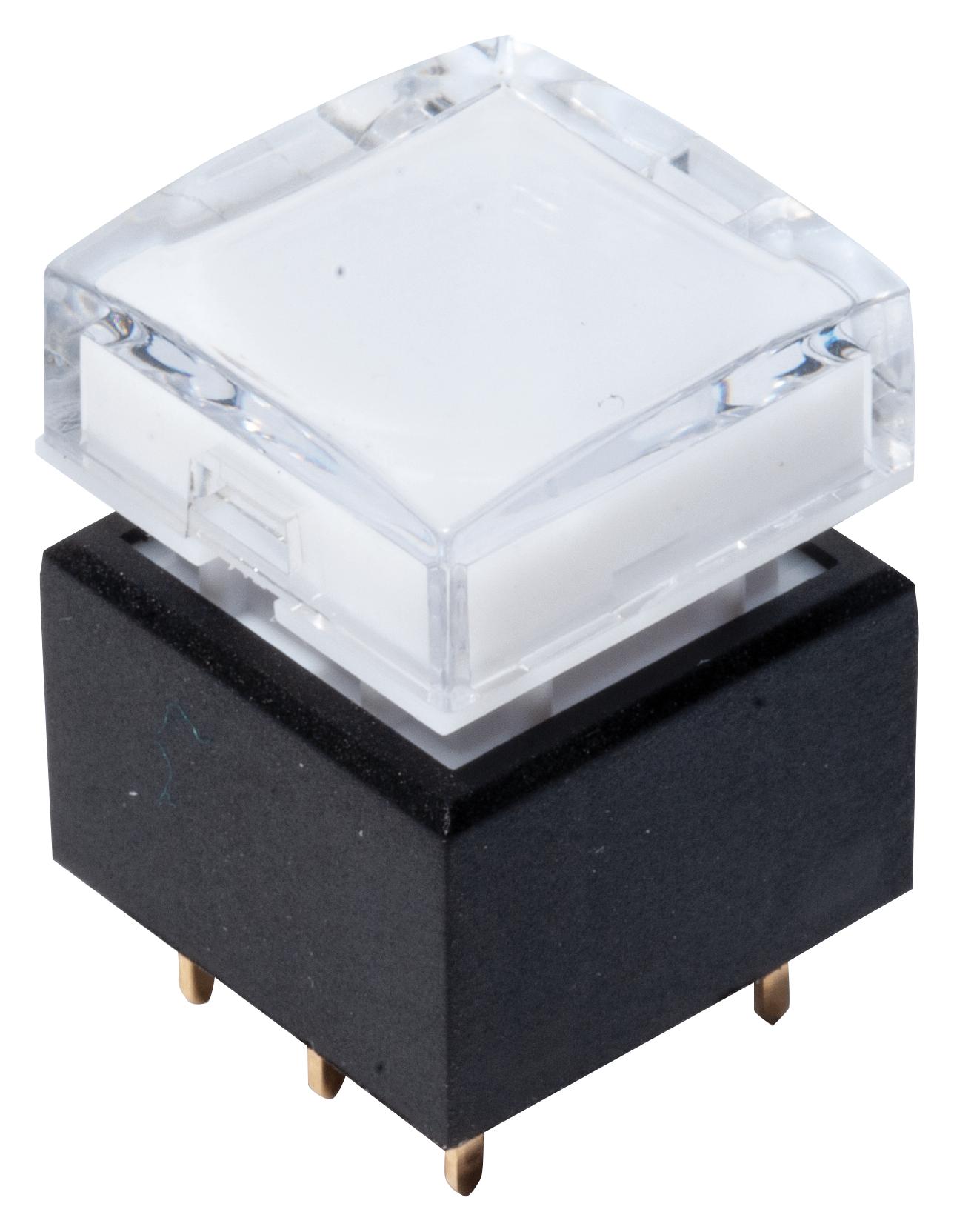

Buy the CK Switches Series KLS12 SPDT: KLS12L063AQ
Order CK Switches KLS12L063AQ today and enhance your control systems with high-quality illuminated pushbutton switches. Designed for durability, these switches feature LED illumination in multiple colors, including red, yellow, green, blue, and RGB, with options for momentary or lock functions. Built from robust materials like brass, copper, and plastic, they support up to 1,000,000 cycles and operate reliably between -40°C and +85°C. Perfect for industrial, AV, and kiosk applications, they offer superior tactile feedback and long-lasting performance for your automation needs.
Get CK Switches KLS12L063AQ today—built for precision and long-lasting durability with illuminated, tactile pushbutton switches.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KLS12L063AQ?
You can click on the BUY or RFQ button to purchase KLS12L063AQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KLS12L063AQ?
You can download the KLS12L063AQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KLS12L063AQ?
C&K COMPONENTS
