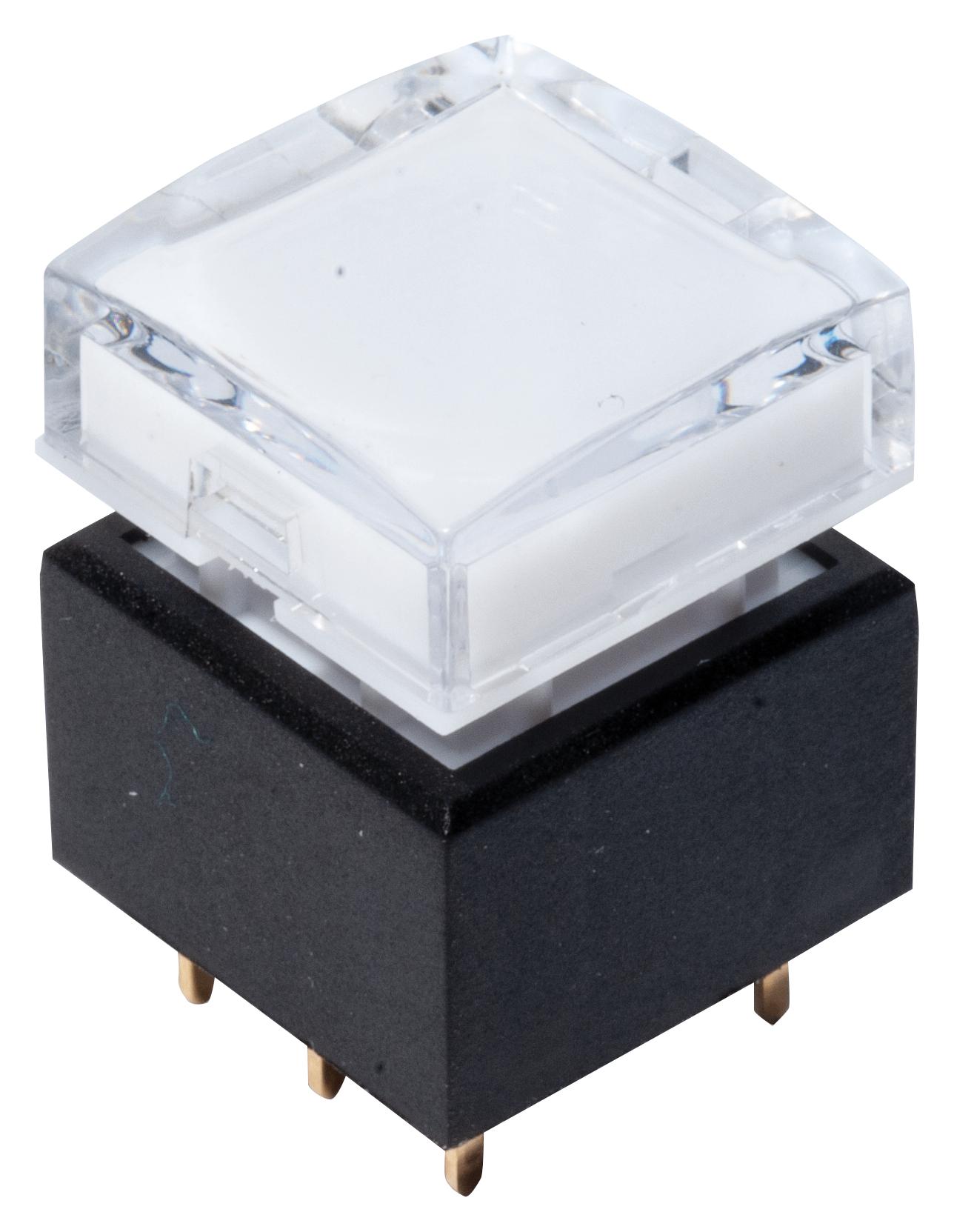

C&K COMPONENTS KLS12L063EQ Illuminated Pushbutton
The illuminated SPDT and DPDT pushbutton switch offers reliable tactile feedback with options for momentary or lock functions. It features durable construction with gold or silver contact materials, and LED illumination in various colors. Ideal for audio/video systems, vending machines, kiosks, and network equipment, it supports up to 1,000,000 mechanical cycles, with a total travel of 2.2 mm and operating forces up to 300 gf. Its robust construction includes a black case and POM actuator, with PCB mounting, ensuring dependable performance in industrial environments.
C&K COMPONENTS KLS12L063EQ Illuminated Pushbutton Specifications:
- Function: SPDT, DPDT
- Contact Arrangement: N.C.
- Mounting Type: Straight PCB terminals
- Operating Life: 1,000,000 cycles
- Total Travel: 2.2 mm
- Operating Force: 200-300 gf
- Contact Rating: Up to 25VDC for gold contacts, 28VDC for silver contacts
- Dielectric Strength: 1,000 V AC for 1 min
- Insulation Resistance: 100 MO min. @ 500 VDC
- Initial Contact Resistance: 50 mΩ max. (silver), 100 mΩ max. (gold)
- Case Material: PAG6+70G33L (Black)
- Actuator Material: POM (White)
- Cap Material: PC
- Spring Material: Stainless steel
- Temperature Range: -40°C to +85°C
Buy the Buy CK Switches Illuminated SPDT DPDT Pushbutton Part Number KLS12L063EQ Online
Experience the durability and reliability of the CK series illuminated pushbutton switch. Designed for industrial control panels, it features LED illumination in multiple colors, high contact ratings, and long mechanical life. Perfect for video systems, vending machines, kiosks, and network equipment, this switch offers PCB mounting with a robust black case and POM actuator. Its versatile design includes options for momentary or lock functions, providing dependable switching in demanding environments. Order online today and enhance your control system.
Order your CK Series KLS12L063EQ illuminated pushbutton today and ensure reliable switching performance with LED illumination for your industrial projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KLS12L063EQ?
You can click on the BUY or RFQ button to purchase KLS12L063EQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KLS12L063EQ?
You can download the KLS12L063EQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KLS12L063EQ?
C&K COMPONENTS
