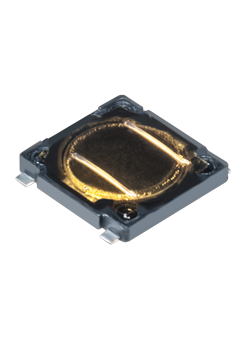

C&K COMPONENTS PTS530GK055SMTRLFS Ultra Low Profile SMT Switch
The C&K PTS530GK055SMTRLFS is a versatile ultra-low profile SMT (Surface Mount Technology) tactile switch, ideal for a wide range of applications including MP3 accessories, Bluetooth headsets, remote controls, and garage door openers. Its compact design (4.5x4.5mm footprint and 0.55mm thickness) makes it suitable for devices where space is limited. The switch offers momentary action with a 1-make contact (SPST N.O.) configuration and features a gullwing termination for easy SMT assembly. It boasts a high number of cycles and symbol line identification for simplified PCB design. The switch is RoHS compliant and designed for infrared reflow soldering, ensuring compatibility with modern manufacturing processes.
C&K COMPONENTS PTS530GK055SMTRLFS Ultra Low Profile SMT Switch Specifications:
- Function: momentary action
- Contact Arrangement: 1 make contact = SPST N.O.
- Terminals: Gullwing for SMT
- Travel: 0.2mm - 0.1 /+ 0.15mm
- Operating Force: 260± 30 gf
- Operating Life: 200,000 operations
- Maximum Voltage: 12 VDC
- Maximum Current DC: 50 mA
- Dielectric Strength: 250 VA C (1mn)
- Contact Resistance: ≤ 100 mΩ
- Insulation Resistance: ≥ 100 MΩ
- Bounce Time: ≤ 10 ms
- Operating Temperature: -40˚C to 85˚C
- Footprint: 4.5 x 4.5 mm
- Thickness: 0.55 mm
- Soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- Packaging: 7,000 pieces per reel, 330 mm reel diameter
Buy the PTS530GK055SMTRLFS C&K COMPONENTS Ultra Low Profile SMT Switch | myMectronic
Secure your C&K PTS530GK055SMTRLFS today and ensure reliable performance in your application.
