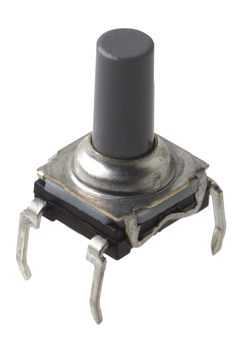

C&K COMPONENTS KSA0M531LFT Sealed Tact Switch
The C&K COMPONENTS KSA & KSL Series Sealed Tact Switches are versatile components designed for a broad range of applications requiring reliable and secure switching functionality. These switches are engineered for both automatic and manual insertion, featuring cambered terminals that ensure self-retention. They are commonly used in automotive, industrial, and telecommunication networks, providing a robust solution for various control and signaling needs. The switches offer IP60 sealing for environmental protection and are available with a variety of options including different actuation forces, termination lengths, and corrosion protection. Users can customize the switch through C&K's easy build-a-switch concept, selecting desired options to create a tailored solution. Please consult with a sales representative for specific part number combinations or contractual specifications.
C&K COMPONENTS KSA0M531LFT Sealed Tact Switch Specifications:
- Contact Arrangement: SPST, N.O.
- Double Overmolding on Terminal Sealing: IP60
- Terminals: PC pins, ground pin optional
- Actuation Force: 1.4 ± 0.4 N
- Operating Life: 100,000 operations
- Travel to Make: 0.5 ± 0.2
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current: 50 mA
- Minimum Current: 1 mA
- Dielectric Strength: 250 Vrms
- Contact Resistance: ≤100m Ω
- Insulation Resistance (100 V): ≥109Ω
- Bounce Time: ≤1 ms
- Operating Temperature: -40˚C to 85˚C
- Storage Temperature: -40˚C to 85˚C
Buy the KSA0M531LFT C&K COMPONENTS Sealed Tact Switch | myMectronic
Purchase the C&K COMPONENTS KSA0M531LFT Sealed Tact Switch securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS KSA0M531LFT?
You can click on the BUY or RFQ button to purchase KSA0M531LFT from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KSA0M531LFT?
You can download the KSA0M531LFT datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KSA0M531LFT?
C&K COMPONENTS
