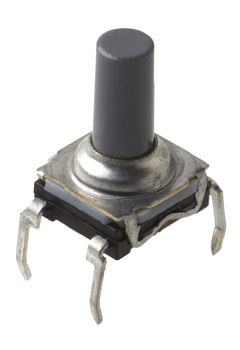

C&K COMPONENTS KSA1M331LFT Sealed Tact Switch
The C&K COMPONENTS KSA & KSL Series Sealed Tact Switches are robust components designed for demanding applications. These switches feature a SPST, N.O. configuration with double overmolding on the terminal sealing, providing an IP60 rating. They are ideal for automotive, industrial, and telecommunication networks, offering a combination of reliability and versatility. The switches are designed for both automatic and manual insertion, with options for actuator type, contact material (silver or gold), and operating force. Customization is possible through a 'build-a-switch' concept, allowing for tailored solutions to meet specific application requirements. Please consult with a sales representative for non-standard configurations or contractual specifications.
C&K COMPONENTS KSA1M331LFT Sealed Tact Switch Specifications:
- Contact Arrangement: SPST, N.O.
- Sealing: IP60
- Terminals: PC pins, ground pin optional
- Actuation Force: 1.4 ± 0.4 N
- Operating Life: 100,000 - 1,000,000 operations
- Travel to Make: 0.5 ± 0.2
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current: 50 mA
- Minimum Current: 1 mA
- Dielectric Strength: 250 Vrms
- Contact Resistance: ≤100m Ω
- Insulation Resistance: ≥109Ω
- Bounce Time: ≤1 ms
- Operating Temperature: -40˚C to 85˚C
- Storage Temperature: -40˚C to 85˚C
Buy the KSA1M331LFT C&K COMPONENTS Sealed Tact Switch | myMectronic
Purchase the C&K COMPONENTS KSA1M331LFT Sealed Tact Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS KSA1M331LFT?
You can click on the BUY or RFQ button to purchase KSA1M331LFT from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KSA1M331LFT?
You can download the KSA1M331LFT datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KSA1M331LFT?
C&K COMPONENTS
