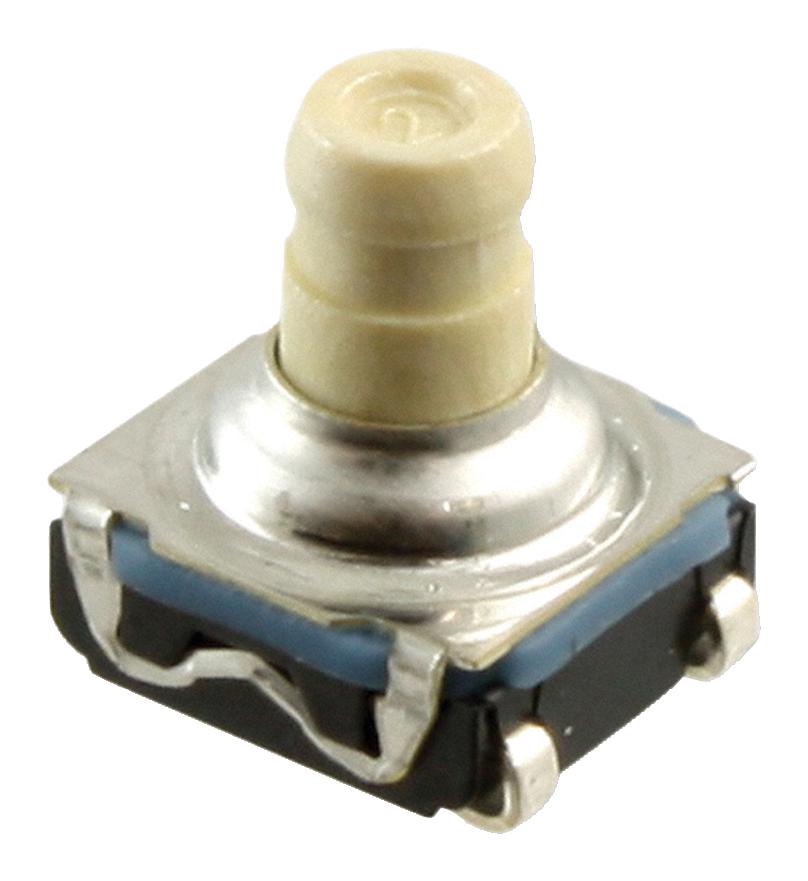

C&K COMPONENTS KSC931JLFS Sealed Tactile Switch
The KSC931JLFS is a sealed tactile switch with a 4.3 N actuation force, designed for high durability with up to 300,000 cycles. It features a silver contact material, IP67 sealing for water resistance, and a compact size suitable for various applications including industrial, medical, and automotive systems. It supports lead-free reflow soldering, has a standard gullwing termination, and offers reliable operation in challenging environmental conditions. The switch's slim profile and high tactile response make it ideal for space-constrained electronics that require durability and precise actuation.
C&K COMPONENTS KSC931JLFS Sealed Tactile Switch Specifications:
- Function: Momentary action
- Contact arrangement: SPST, N.O.
- Termination: Gullwing type for SMT
- Force: 4.3 N (340 grams)
- Travel: 0.2 mm +/- 0.1 mm
- Contacts: Silver
- IP Rating: IP67
- Maximum voltage: 32 VDC
- Maximum current: 50 mA
- Soldering: Lead free reflow compatible
- Operating temperature: -40°C to 85°C
- Storage temperature: -55°C to 85°C
- Mechanical life: 300,000 cycles
- Electrical life: 100,000 cycles
- Contact resistance: < 100 mΩ initial
- Insulation resistance: > 1 GΩ
- Bounce time: < 1 ms
- Dielectric strength: > 250 V rms
Buy the CK Switches KSC931JLFS – Reliable Sealed Tactile Switch for Industrial Applications
Purchase the CK Switches KSC931JLFS today online and enhance your electronic projects with a highly reliable, IP67 sealed, 4.3 N force tactile switch. Perfect for industrial, medical, and automotive uses, it offers up to 300,000 cycles lifecycle, compact design, and lead-free reflow solderability. Ensure your devices operate excellently under tough environmental conditions with this high-performance switch, optimized for space-saving applications and demanding safety standards.
Order your CK Switches KSC931JLFS today and ensure superior performance and durability in your industrial and electronic designs.
