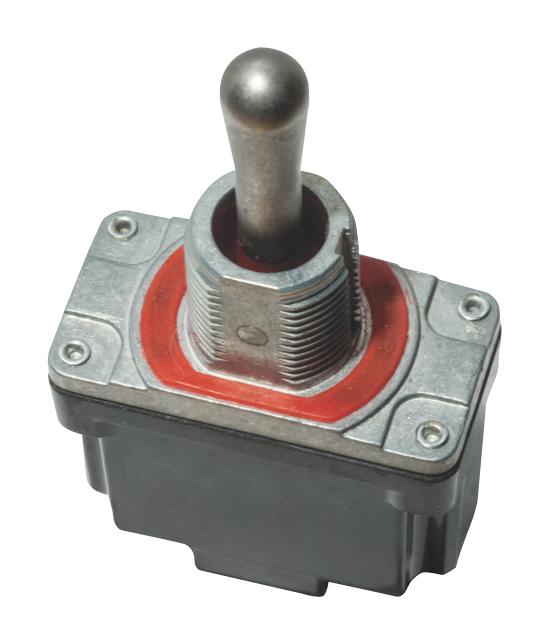

C&K COMPONENTS PT102SZQ Sealed Power Toggle Switch
The PT Series Sealed Power Toggle Switch offers reliable performance in demanding industrial environments. Featuring IP66/IP68 ratings, it withstands harsh weather, dust, and dirt, making it ideal for off-road, construction, agricultural vehicles, and outdoor industrial equipment. Constructed from durable materials like stainless steel and zinc die cast, it provides superior oil and fuel resistance. With certified UL 61058-1 compliance, integrated panel seals, and a high-strength, heat-resistant housing, this switch ensures long-lasting operation under vibration and harsh conditions, supporting a wide range of electrical and mechanical applications.
C&K COMPONENTS PT102SZQ Sealed Power Toggle Switch Specifications:
- Materials: UL case Thermoset, stainless steel actuator and pivot pin, zinc die cast bushing, silicone seal, copper alloy moveable contacts, brass terminals with silver plating, nickel plated hardware, over molded silicone bushing seal
- Electrical Ratings: 5A GP, 277VAC 50/60Hz; 1/2 hp, 125VAC; 1 hp, 250VAC; 10A GP, 277VAC; 25A DC; 10A, 28VDC; 0.75A, 125VDC; 0.5A, 250VDC
- Resistive Load: up to 25A, 24VDC; 0.75A, 125VDC; 0.5A, 250VDC
- Dielectric Strength: 2500V min. (terminal to toggle)
- Insulation Resistance: 1000 MQ min.
- Contact Resistance: 50 mΩ max.
- Operating & Storage Temperature: -40°C to +85°C
- IP Ratings: IP66 / IP68
- Packaging: Trays
- Switch Functions: various options including On-None-On, On-Off-On, Mom-Off-Mom, with different terminal types (screw, quick connect, solder)
- Design standards: UL 61058-1 certified, suitable for harsh outdoor and industrial environments
Buy the Brand PT – Reliable Switch for Industrial Applications
Purchase the PT Series Sealed Power Toggle Switch online today and ensure your equipment operates reliably under harsh weather, dust, and vibration. Designed for demanding applications like construction, agriculture, and outdoor industrial machinery, this switch offers superior sealing, robust materials, and certified safety standards. Its IP66/IP68 rated construction protects against water and dust ingress, making it ideal for outdoor use. Invest in this durable, high-performance toggle switch now and enjoy long-lasting operation in tough conditions with easy online ordering and fast delivery.
Buy PT Series toggle switch now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PT102SZQ?
You can click on the BUY or RFQ button to purchase PT102SZQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PT102SZQ?
You can download the PT102SZQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PT102SZQ?
C&K COMPONENTS
