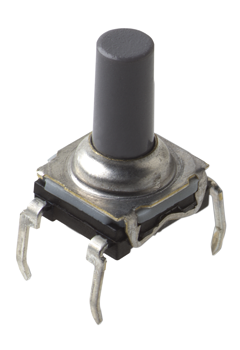

C&K COMPONENTS KSL0A411LFT Sealed Tact Switch
The C&K COMPONENTS KSL0A411LFT is a sealed tactile switch within the KSL series, engineered for robust performance in demanding environments. Designed for both automatic and manual insertion, this switch offers a convenient and reliable solution for various applications. The cambered terminals ensure self-retention, simplifying integration and enhancing durability. It is RoHS compliant and suitable for use in automotive, industrial, and telecommunication networks. Available with silver or gold contacts, and various actuation forces and termination lengths, the KSL0A411LFT provides a versatile option for diverse design requirements. Please consult your sales representative for specific configurations and compatibility.
C&K COMPONENTS KSL0A411LFT Sealed Tact Switch Specifications:
- Contact Arrangement: SPST, N.O.
- Double Overmolding on Terminal Sealing: IP60
- Terminals: PC pins, ground pin optional
- Actuation Force: 1.4 ± 0.4 N
- Operating Life: 100,000 operations
- Travel to Make: 0.5 ± 0.2
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current: 50 mA
- Minimum Current: 1 mA
- Dielectric Strength: 250 Vrms
- Contact Resistance: ≤100m Ω
- Insulation Resistance (100 V): ≥109Ω
- Bounce Time: ≤1 ms
- Operating Temperature: -40˚C to 85˚C
- Storage Temperature: -40˚C to 85˚C
