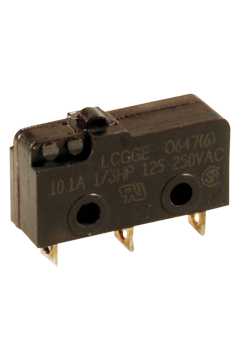

C&K COMPONENTS LCGDL9T13EC Snap-Acting Precision Switch
The C&K COMPONENTS LCGDL9T13EC is a subminiature precision snap-acting switch engineered for demanding applications requiring reliability and compactness. Featuring a long electrical life and a wide variety of actuator styles, this switch provides versatility in design and integration. Its quick connect options simplify installation, making it suitable for both wire lead and PC mounting. Commonly used in motorized equipment, sump pumps, and thermostatic controls, the LCGDL9T13EC delivers dependable performance in a small package. Constructed with thermoplastic polyester or high-temperature thermoplastic housing, copper alloy pivot and movable contacts with fine silver or gold plating, and epoxy terminal seal, this switch ensures durability and optimal electrical contact.
C&K COMPONENTS LCGDL9T13EC Snap-Acting Precision Switch Specifications:
- Contact Rating: From low level to 10.1 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles
- Insulation Resistance: 1,000 M ohm min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -17ºF to 185ºF (-25ºC to 85ºC)
- Operating Force: From 142 to 170 grams at actuator button
- Mounting: 2-56 screws, torque 2.3 in/lbs max.
- Switch Housing: Thermoplastic polyester or high temperature thermoplastic (PTS) (UL 94V-0)
- Actuator Button: Thermoplastic polyester (UL 94V-0)
- Spring: Copper alloy
- Pivot: Copper alloy
- Movable Contacts: Fine silver for ratings greater than 1 AMP @ 125 V AC; Fine silver with 24K gold plate for 1 AMP @ 125 V AC or less
- Stationary Contacts: Fine silver welded on copper alloy for ratings greater than 1 AMP @ 125 V AC; Gold alloy welded on copper alloy for ratings less than 1 AMP @ 125 V AC
- Terminals: Copper alloy
- Terminal Seal: Epoxy
