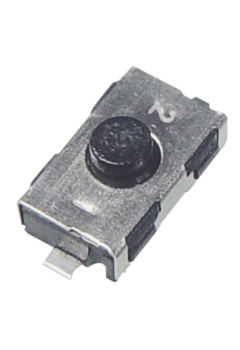

C&K COMPONENTS KSR222GLFS PCB Keyswitch
The C&K COMPONENTS KSR222GLFS is a versatile PCB keyswitch known for its high switching reliability and compact design. Ideal for applications requiring precise control and feedback, these keyswitches are suitable for use under an overlay or with RK 90 keycaps. Available in print and SMD versions, they offer flexibility for various manufacturing processes. The switches are designed for robust performance, meeting standards for resistance to constant and variable environments, and are suitable for a wide range of industrial and consumer applications.
C&K COMPONENTS KSR222GLFS PCB Keyswitch Specifications:
- recommended_key_grid: ≥12 mm
- overall_height: 5.0 mm
- contacts: Gold
- number_of_contacts: 4 - 6
- illumination: Non-illuminated
- signal_indicator: variable plunger
- key_grid: ≥15.24 mm
- operating_force: 3.3[+/-0.6] N
- switching_travel: 0.34[+/-0.1] mm
- rated_voltage_min: 0.02 V
- rated_voltage_max: 42 V
- rated_current_min: 0.01 mA
- rated_current_max: 100 mA
- rated_power_max: 1 W
- contact_resistance_new: 100 mΩ
- insulation_resistance: 10[9] Ω
- bouncing_time: 5 ms
- ambient_temp_min: -40 °C
- ambient_temp_max: +80 °C
- operating_life: 1000000 S
- dimensions_length: 8.4 mm
- dimensions_width: 8.4 mm
