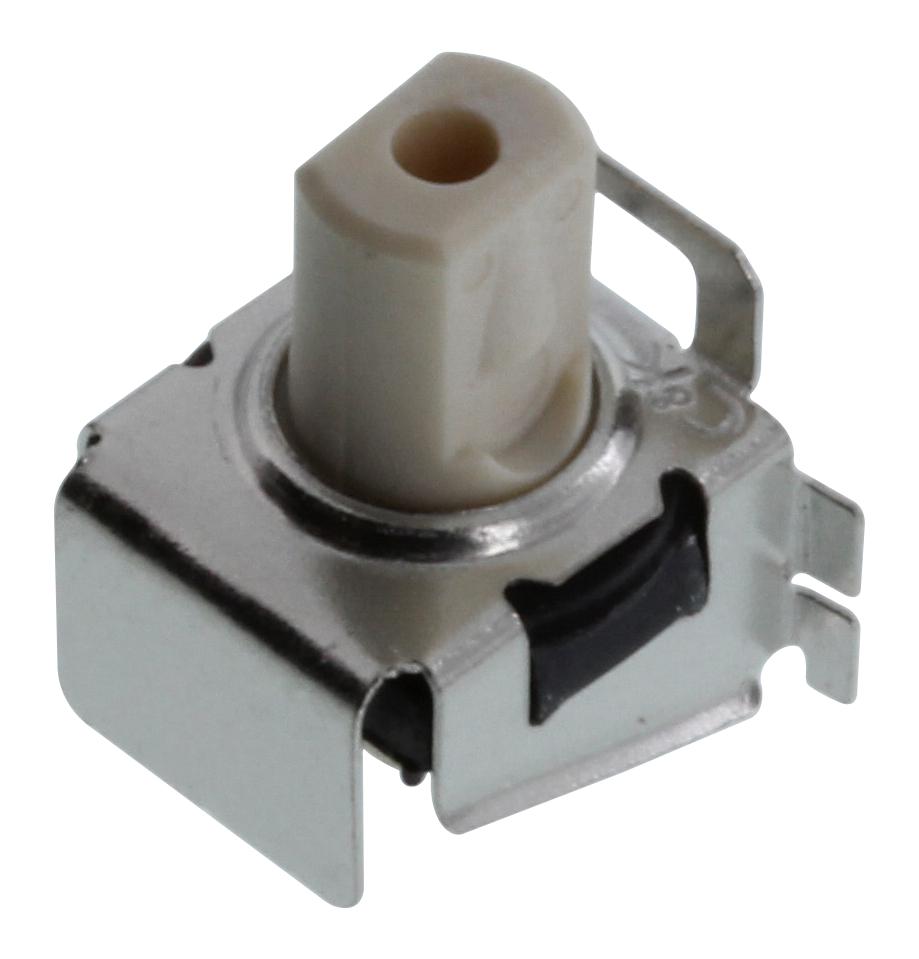

C&K COMPONENTS KT11S2SA2M34LFS Miniature Illuminated SMT Tact Switch
The KT11S2SA2M34LFS is a miniature illuminated SMT tact switch designed for application versatility, offering high durability with up to 500,000 cycles. It features a 3.4 mm height, 0.2 mm travel, and comes with options for various LED colors, terminal types, and actuator forces. Its robust design supports high-reliability uses in IoT devices, remote controls, and portable electronics. The switch is RoHS compliant with a maximum voltage of 12 VDC and current of 50 mA, suitable for compact, high-performance electronic systems.
C&K COMPONENTS KT11S2SA2M34LFS Miniature Illuminated SMT Tact Switch Specifications:
- Function: Momentary action
- Contact Arrangement: SPST, N.O.
- Terminals: SMT with positioning pegs; optional for no pegs
- Travel: 0.2 mm +/- 0.1 mm
- Operating Force: 160 gf (1.6 N), 250 gf (2.5 N), 340 gf (3.4 N)
- Life Expectancy: 500,000 operations
- Maximum Voltage: 12 VDC
- Maximum Current: 50 mA
- Dielectric Strength: > 250 Vrms
- Contact Resistance: < 100 mΩ
- Insulation Resistance: > 100 MΩ
- Bounce Time: < 10 ms
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -55°C to 85°C
- Sealing Level: IP60 / IP67
- Dimensions: Height 3.4 mm, travel 0.2 mm, external diameter 330 mm + 2 mm
- Soldering: Compatible with lead-free reflow process in accordance with IEC 61760-1
Buy the CK Series Miniature Illuminated SMT Tact Switch 3.4 mm: KT11S2SA2M34LFS
Order the CK Series Miniature Illuminated SMT Tact Switch KT11S2SA2M34LFS now to benefit from its compact size, multiple LED color options, and high cycle life. Perfect for IoT devices, remote controls, and portable electronics, this switch offers excellent tactile feedback, IP67 sealing, and RoHS compliance. With a 3.4 mm height and travel of 0.2 mm, it ensures reliable operation even in demanding environments. Enhance your designs with this high-performance, versatile switch, available for quick online purchase with flexible packaging options.
Buy CK Series KT11S2SA2M34LFS now and experience high durability, compact design, and reliable performance for your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KT11S2SA2M34LFS?
You can click on the BUY or RFQ button to purchase KT11S2SA2M34LFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KT11S2SA2M34LFS?
You can download the KT11S2SA2M34LFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KT11S2SA2M34LFS?
C&K COMPONENTS
