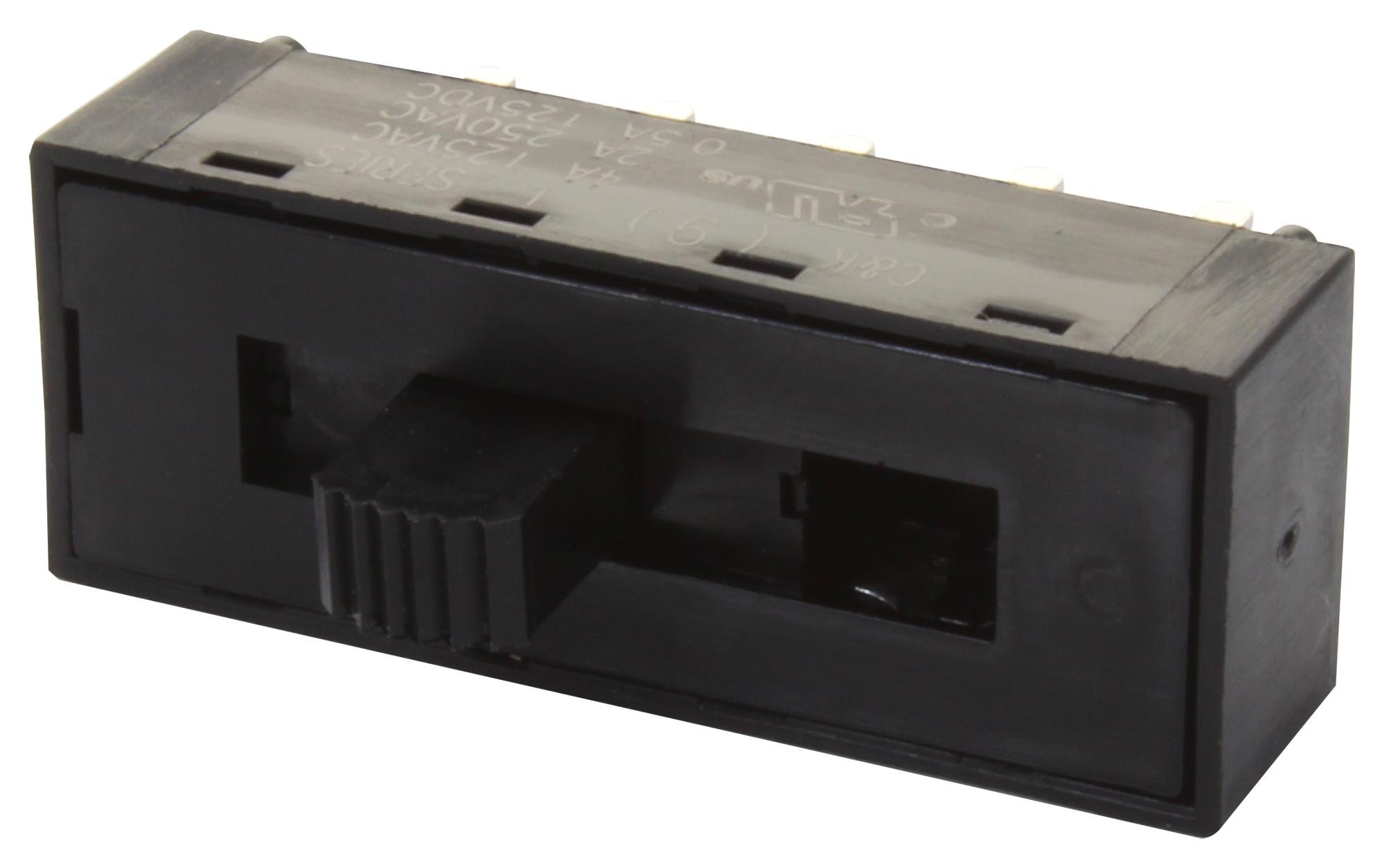

C&K COMPONENTS L204011MS02Q Miniature Slide Switch
The L204011MS02Q is a miniature slide switch designed for precise control in various electronic applications. Featuring maintained and momentary functions with positive detent, its robust design includes a nylon housing, silver-plated copper contacts, and multiple mounting options such as panel and thru-hole configurations. Suitable for communication equipment and lighting devices, it offers excellent electrical life, low contact resistance, and insulation resistance, all compliant with RoHS standards. Its compact size and durable construction make it ideal for reliable, space-efficient switching solutions in diverse industrial and consumer electronics.
C&K COMPONENTS L204011MS02Q Miniature Slide Switch Specifications:
- Contact Rating: 4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC; 0.5 AMP @ 125 V DC
- Electrical Life: 10,000 cycles
- Contact Resistance: Below 10 mΩ
- Insulation Resistance: 10^9 Ω min
- Dielectric Strength: 1,000 Vrms min
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -30°C to +85°C
- Housing Material: 6/6 nylon, black
- Actuator: Nylon, natural, with positive detent
- Contact Material: Copper, silver plated
- Terminals: Copper, silver plated
- Mounting Options: Panel, thru-hole and right angle
- Seal: Epoxy or none
- RoHS Compliant: Yes
Buy the CK Series L204 Miniature Slide Switch: L204011MS02Q
Purchase the CK Series L204011MS02Q miniature slide switch online today and enhance your electronic designs with this reliable, low-resistance, space-saving switch. Featuring robust nylon housing, silver-plated contacts, and multiple mounting options, it offers exceptional electrical life and insulation resistance, suitable for communications and lighting applications. Its compact size and RoHS compliance make it ideal for space-constrained projects requiring dependable performance. Order now to enjoy quick delivery and technical support for your industrial or consumer electronics needs.
Order your CK Series L204011MS02Q miniature slide switch today and ensure reliable switching with compact, durable design for your electronics projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS L204011MS02Q?
You can click on the BUY or RFQ button to purchase L204011MS02Q from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part L204011MS02Q?
You can download the L204011MS02Q datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of L204011MS02Q?
C&K COMPONENTS
