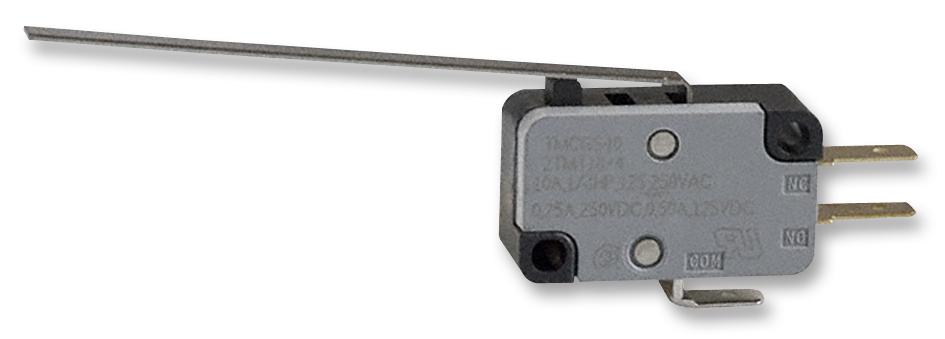

C&K COMPONENTS TMCGD6ST1840C Miniature Snap-acting Switch
The TM Series miniature snap-acting switches are compact, high-reliability devices suitable for pump and motor applications. Featuring various actuator and terminal styles, they support a wide contact rating up to 15 amps at 250 volts AC. Operating forces from 50 to 150 grams and temperature tolerance from -67°F to 302°F ensure flexibility for different environments. Constructed with thermoplastic or phenolic housings, gold or silver contact materials, and brass or copper alloy components, these switches are RoHS compliant and designed for long electrical life. Optional configurations include different mounting, actuator, and circuit styles for versatile industrial and consumer use.
C&K COMPONENTS TMCGD6ST1840C Miniature Snap-acting Switch Specifications:
- Contact Rating: Up to 15 AMPS @ 250 V AC
- Electrical Life: 150,000 cycles at 15 AMPS @ 250 V AC, 350,000 cycles at 10 AMPS @ 250 V AC
- Insulation Resistance: 1,000 M ohms min
- Dielectric Strength: 1,000 Vrms min
- Operating Temperature: -67°F to 302°F (-55°C to 150°C)
- Operating Force: 50, 75 and 150 grams depending on actuator
- Mounting: Torque screws 2-5 in/lbs
- Housing Material: Thermoplastic or phenolic (UL 94V-0)
- Spring: Copper alloy
- Movable Contact: Gold alloy or fine silver
- Stationary Contact: Gold alloy or fine silver
- Terminals: Brass alloy for ratings up to 10A, copper alloy for 15A
- Actuator Styles include pin plunger, lever, simulated roller, and lever roller
- RoHS compliant; optional configurations available for specific needs
Buy the Broad Series TM: Miniature Snap-acting Switches - TMCGD6ST1840C
Order the Broad Series TM miniature snap-acting switches online today for reliable operation across various industries. With contact ratings up to 15A at 250V AC, they support high electrical loads for pumps, motors, and consumer appliances. Featuring durable thermoplastic or phenolic housings, gold or silver contacts, and versatile actuator options, these switches are RoHS compliant and suited for demanding environments. Easily select the desired actuator style, mounting, and circuit configurations through our online platform for quick, convenient procurement of high-quality switch solutions.
Get Broad Series TM miniature snap-acting switch today—built for precision and long-lasting durability gathering diverse applications from pumps to appliances.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TMCGD6ST1840C?
You can click on the BUY or RFQ button to purchase TMCGD6ST1840C from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TMCGD6ST1840C?
You can download the TMCGD6ST1840C datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TMCGD6ST1840C?
C&K COMPONENTS
