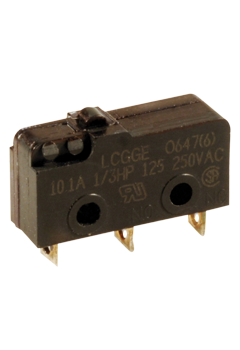

C&K COMPONENTS LCGHL9P00EC Snap-Acting Precision Switch
The C&K COMPONENTS LCGHL9P00EC is a subminiature precision snap-acting switch offering a compact design and robust performance. It's engineered for long life and high electrical capacity, making it suitable for a wide range of applications. The switch provides quick connect options for easy integration and features a variety of actuator styles to meet diverse design requirements. Commonly used in motorized equipment, sump pumps, and thermostatic controls, the LCGHL9P00EC delivers reliable switching action in demanding environments. Its thermoplastic polyester or PTS housing (UL 94V-0) ensures durability and safety.
C&K COMPONENTS LCGHL9P00EC Snap-Acting Precision Switch Specifications:
- Contact Rating: From low level to 10.1 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles
- Insulation Resistance: 1,000 M ohm min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -17ºF to 185ºF (-25ºC to 85ºC)
- Operating Force: From 142 to 170 grams at actuator button
- Mounting: 2-56 screws, torque 2.3 in/lbs max.
- Switch Housing: Thermoplastic polyester or high temperature thermoplastic (PTS) (UL 94V-0)
- Actuator Button: Thermoplastic polyester (UL 94V-0)
- Spring: Copper alloy
- Pivot: Copper alloy
- Movable Contacts: Fine silver for ratings greater than 1 AMP @ 125 V AC; Fine silver with 24K gold plate for 1 AMP @ 125 V AC or less
- Stationary Contacts: Fine silver welded on copper alloy for ratings greater than 1 AMP @ 125 V AC; Gold alloy welded on copper alloy for ratings less than 1 AMP @ 125 V AC
- Terminals: Copper alloy
- Terminal Seal: Epoxy
Buy the LCGHL9P00EC C&K COMPONENTS Snap-Acting Precision Switch | myMectronic
Purchase the C&K COMPONENTS LCGHL9P00EC switch securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS LCGHL9P00EC?
You can click on the BUY or RFQ button to purchase LCGHL9P00EC from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part LCGHL9P00EC?
You can download the LCGHL9P00EC datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of LCGHL9P00EC?
C&K COMPONENTS
