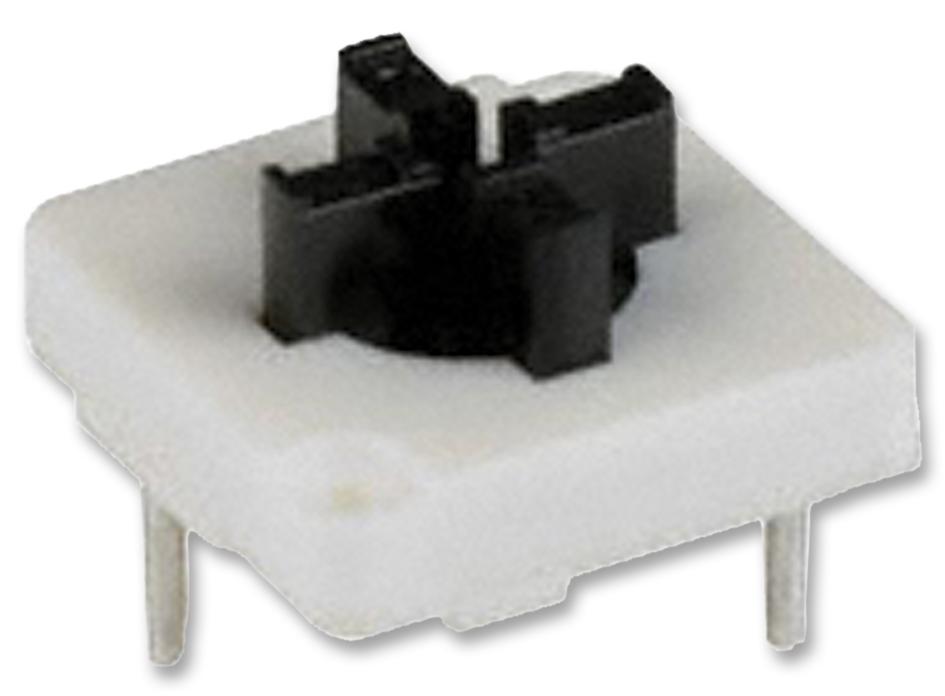

C&K COMPONENTS MDPSLFS Momentary PCB Switch
The MDPSLFS key switch combines a momentary contact with a compact design, featuring a short travel distance of 0.3 mm and tactile feedback. This switch type is suitable for PCB mounting and is available with silver or gold-plated contact materials for enhanced conductivity and durability. Designed for industrial and electronic applications, it offers reliable switching with a maximum voltage of 100 VAC/DC and current of 100 mA, making it ideal for control panels, automation, and instrumentation systems. Its robust construction ensures long operational life and consistent performance under varied environmental conditions.
C&K COMPONENTS MDPSLFS Momentary PCB Switch Specifications:
- Contact Material: Silver, Gold
- Contact Resistance: 10 mΩ (initial)
- Insulation Resistance: 10⁹ Ω
- Dielectric Strength: 300 V (60 Hz/1 Min)
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Switching Power: Max. 6 W AC/DC
- Switching Voltage: Max. 100 VAC/DC
- Switching Current: Max. 100 mA AC/DC
- Switching Travel: 0.3 mm
- Operating Force: 2.4 N + 25%
- Dimensions: 12.7 mm (center distance), Button diameter 6.8 mm
- Terminal Type: PC pins
- Environmental Condition: Climatic category 56 for gold version
- Soldering: Static bath at 255°C for 5 seconds
- Life Expectancy: 5 x 10⁶ cycles
Buy the ITT Industries MDPSLFS – Reliable Momentary Switch for Industrial Applications
Purchase the ITT Industries MDPSLFS online today for high-quality, reliable control switching solutions suitable for industrial and electronic applications. This compact switch features short travel, tactile feedback, and durable contacts made from silver or gold, ensuring long-term performance. Perfect for automation, control panels, and instrumentation, it supports maximum operating voltage of 100 VAC/DC and current of 100 mA. Designed for harsh environments with excellent temperature and climatic resistance, it guarantees consistent operation and extended lifespan. Order now for fast delivery and trusted quality.
Get ITT Industries MDPSLFS today—built for precision, durability, and dependable switching in control systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS MDPSLFS?
You can click on the BUY or RFQ button to purchase MDPSLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part MDPSLFS?
You can download the MDPSLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of MDPSLFS?
C&K COMPONENTS
