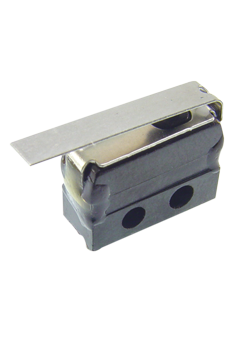

C&K COMPONENTS MMGGD1P0C Precision Snap-Acting Switch
The C&K COMPONENTS MMGGD1P0C is a subminiature precision snap-acting switch ideal for communication devices and applications requiring compact size and reliable performance. This switch offers low-level switching capabilities, ensuring minimal arcing during operation, and boasts a long electrical and mechanical life. Its robust snap-acting mechanism provides a positive and consistent action, while the phenolic housing and carefully selected materials contribute to its durability and reliability. Available with various actuator and termination options to suit diverse design requirements.
C&K COMPONENTS MMGGD1P0C Precision Snap-Acting Switch Specifications:
- Contact Rating: From low level to 7 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles at full rated load
- Insulation Resistance: 1,000 ohm min
- Dielectric Strength: 1,000 V RMS min. @ sea level
- Operating Temperature: –67 F to 275 F (–55 C to 135 C)
- Operating Force: 5 oz. (142 grams) max. at actuator button
- Mounting: 2-56 screws, torque 2 in/lbs max
- Switch Housing Material: Heat resistant phenolic (UL 94V-0)
- Actuator Button Material: Heat resistant phenolic (UL 94V-0)
- Spring Material: Beryllium copper CDA alloy C17200
- Pivot Material: Brass CDA alloy 260
- Movable Contact Material: Fine silver (for ratings > 1 AMP @ 125 V AC), 24K gold (for ratings <= 1 AMP @ 125 V AC)
- Stationary Contact Material: Fine silver inlay on copper CDA alloy C10200 (for ratings > 1 AMP @ 125 V AC), 24K gold on copper CDA alloy C10200 (for ratings <= 1 AMP @ 125 V AC)
- Terminal Material: Copper CDA alloy C18700
- Low Level Condition: 0.4 VA max. @ 20 V AC or DC max
