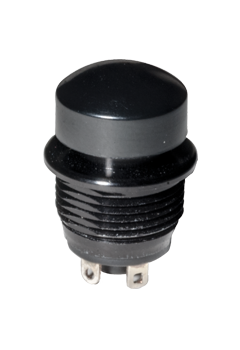

C&K COMPONENTS NP8S5P203QE Sealed Industrial Pushbutton
The C&K Components NP8S5P203QE is a robust sealed industrial pushbutton switch engineered for demanding applications. Its IP68 rating ensures protection against dust and water ingress, making it suitable for off-road, transportation, and military environments. The switch boasts a long mechanical life of 1,000,000 cycles and offers multiple housing styles and wirelead options to accommodate diverse installation requirements. It is capable of handling up to 5A resistive load and features gold-over-silver or silver contact options for reliable performance.
C&K COMPONENTS NP8S5P203QE Sealed Industrial Pushbutton Specifications:
- Function: SPDT Double Break (Form Z) Momentary
- Contact Arrangement: N.O. and N.C.
- Dielectric Strength: 1000 V AC for 1 min.
- Insulation Resistance: 1 G Ω @ 500 VDC
- Mounting Type: Threaded front or rear mount and slot mount
- Torque Spec for Threaded Body: Do not exceed 50 in-lbs (5.65 N-m)
- Initial Contact Resistance: 50 mΩ max (without wire leads)
- Bounce Time: <5 ms
- Housing Material: 6061-T6 Aluminum, black or clear anodized
- Base Material: PBT
- Cap Material: PBT
- Operating Life: 1,000,000 cycles
- Total Travel: 1.6 ± 0.15 mm
- Operating Point: 0.9 ± 0.25 mm
- Over Travel: 0.45 min.
- Operating Force: 8N ± 1.5N
- Vibration: 10-500 Hz 10g Max
- Shock: 50g 11ms sawtooth wave
- Contact Rating (Gold over Silver): 10mA/5 VDC (1,000,000 cycles)
- Contact Rating (Silver): 1A/32 VDC resistive (100,000 cycles), 5A/32 VDC resistive (25,000 cycles), 3A/32 VDC resistive (25,000 cycles)
- Operating Temperature: -40˚C to +85˚C
- ESD Protection: 15KV min.
- Sealing: IP68
