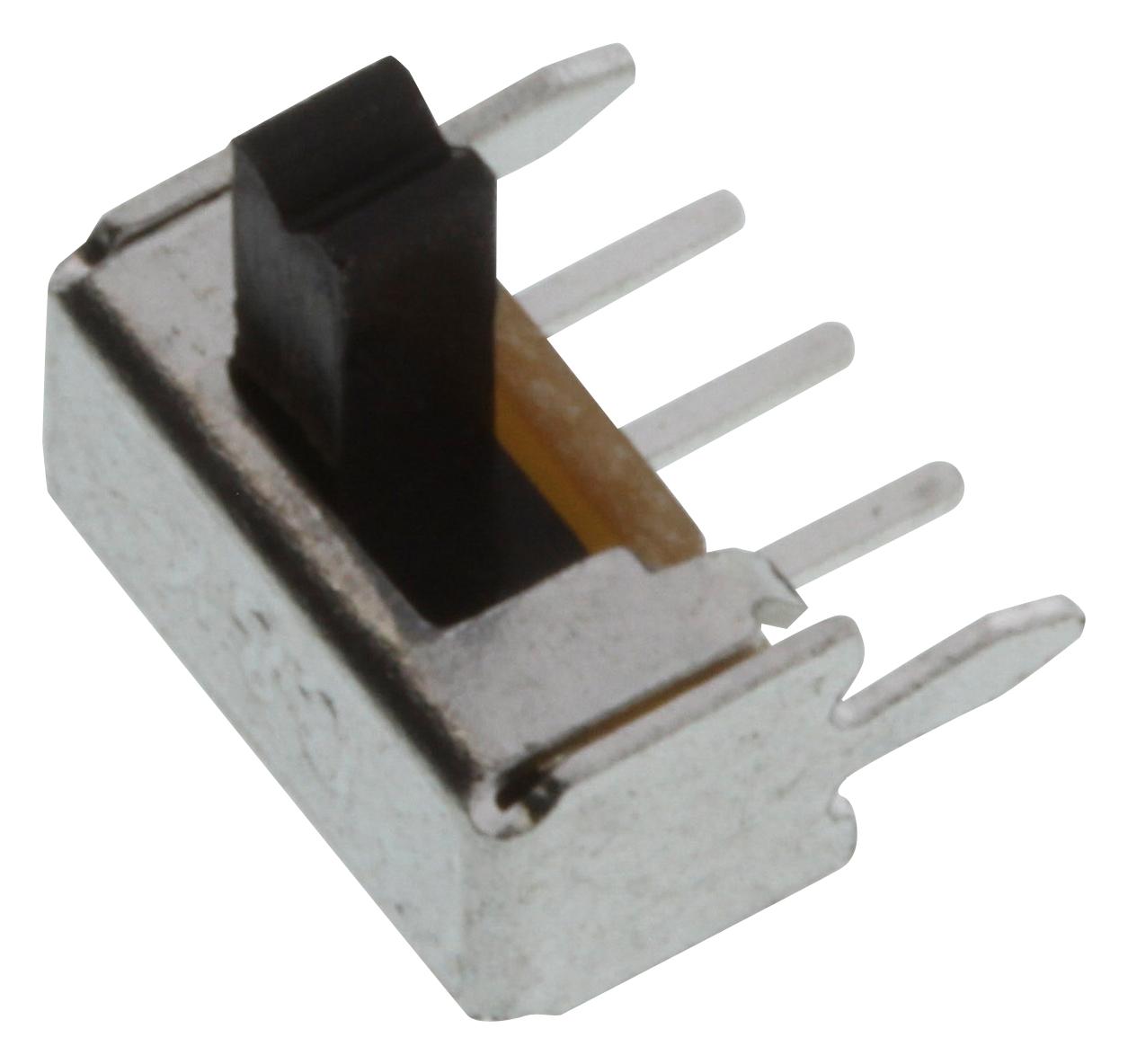

C&K COMPONENTS OS102011MA1QS1 Miniature Slide Switch
Miniature slide switches are compact, reliable electrical components suitable for various applications including test & measurement equipment, consumer electronics, and network products. They feature different actuation options, RoHS compliance, and halogen-free materials. These switches have a mechanical lifespan of 10,000 cycles, contact resistance of 20 mΩ or less, and insulation resistance of at least 100 MΩ at 500 VDC. With operating temperatures from -30°C to +70°C, they include PC mountings, sealed terminals, and multiple contact configurations like SPDT, DPDT, and SP3T, ideal for precise toggle or slide actuation in compact electronic devices.
C&K COMPONENTS OS102011MA1QS1 Miniature Slide Switch Specifications:
- Contact Rating: varies per model, typically 0.1A to 0.38A at 12-30 VDC
- Mechanical & Electrical Life: 10,000 cycles
- Contact Resistance: 20 mΩ or less
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Moving Contact: Copper alloy, silver plated
- Stationary Contacts: Brass, silver plated
- Operating Temperature: -30°C to +70°C
- Materials: Phenolic resin base, POM or PA46 actuator
- Mounting: PC mount
- Terminals: Brass, silver plated, sealed
- Contact Configurations: SPDT, DPDT, SP3T, DP3T
- Dimensions: Compact, specific to models, with travel distances of approximately 0.40 to 1.80 inches
- RoHS compliant, halogen free material
- Certifications: Suitable for consumer and industrial use
Buy the OS Series Miniature Slide Switches: OS102011MA1QS1
Order OS Series Miniature Slide Switches online today for dependable, high-quality switching solutions. Designed for durability, these switches feature sealed terminals, multiple contact configurations, and RoHS compliance. Perfect for consumer electronics, test equipment, and network devices, they are easy to mount on PC boards and offer long-lasting performance with a lifespan of 10,000 cycles. Whether you need SPDT, DPDT, or SP3T options, buy now to ensure your project benefits from compact, reliable, and high-performance electrical switching components.
Get OS Series Miniature Slide Switches—built for reliable, precise switching in electronics and industrial devices today.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS102011MA1QS1?
You can click on the BUY or RFQ button to purchase OS102011MA1QS1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS102011MA1QS1?
You can download the OS102011MA1QS1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS102011MA1QS1?
C&K COMPONENTS
