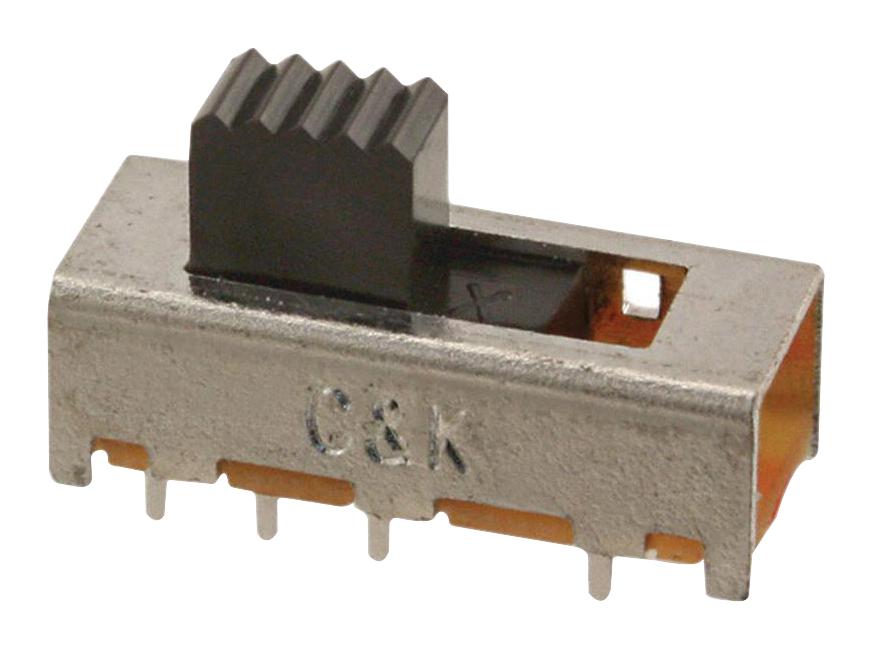

C&K COMPONENTS OS103012MU2QP1 Miniature Slide Switch
Miniature slide switches with high reliability and precise switching for electronic devices. Features include multiple actuators, various termination options, RoHS compliance, and a broad operating temperature range. Ideal for test equipment, computer peripherals, consumer products, and network devices, these switches offer up to 10,000 cycles of mechanical and electrical life, with a contact resistance of 20 mΩ or less. Their sealed terminal design ensures durability and protection against environmental factors.
C&K COMPONENTS OS103012MU2QP1 Miniature Slide Switch Specifications:
- Contact Rating: 0.1A @ 12 VDC
- Mechanical & Electrical Life: 10,000 cycles
- Contact Resistance: 20 mΩ or less
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Moving Contact: Copper alloy, silver plated
- Stationary Contacts: Brass, silver plated
- Operating Temperature: -30°C to +70°C
- Materials: Base phenolic resin, actuator POM or PA46, housing SPCC Sn plated
- Sealed Terminals: Brass, silver plated
- RoHS compliant, Halogen free material
- Variety of actuators and terminations for diverse applications
Buy the OS Series Miniature Slide Switches: OS103012MU2QP1
Order the OS Series Miniature Slide Switch today and enjoy reliable performance with up to 10,000 cycles of operation, sealed terminals for environmental protection, and a variety of configurations to suit your needs. These switches are ideal for test equipment, consumer electronics, and network products, ensuring high durability and precise switching. Buy online now to enhance your electronic design with RoHS-compliant, halogen-free materials, and broad operating temperature range for your application.
Get OS Series OS103012MU2QP1 today—built for precision and long-lasting durability in electronic switching applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS103012MU2QP1?
You can click on the BUY or RFQ button to purchase OS103012MU2QP1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS103012MU2QP1?
You can download the OS103012MU2QP1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS103012MU2QP1?
C&K COMPONENTS
