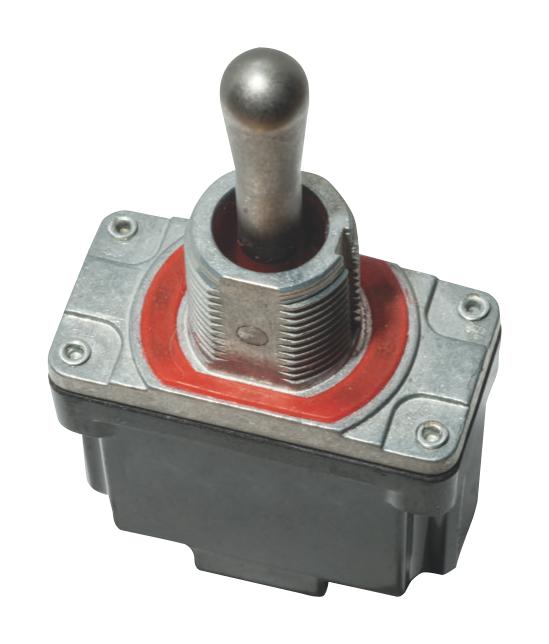

C&K COMPONENTS PT208SSQ Power Toggle Switch
The PT208SSQ is a sealed power toggle switch designed for demanding outdoor and industrial applications, including off-road, construction, and agricultural vehicles. It offers IP66/IP68 ratings, ensuring protection against dust, dirt, and water ingress. Constructed with a high-strength, heat-resistant housing, it features a silver contact material for reliable switching and various actuator and terminal options. This switch is suitable for lift controls, weather-resistant machinery, and harsh environments, with UL electrical ratings up to 15A and 277VAC, proven durability for over 10,000 cycles, and options for momentary or maintained functions.
C&K COMPONENTS PT208SSQ Power Toggle Switch Specifications:
- IP66 / IP68 rated for dust and water resistance
- UL electrical ratings: 15A GP, 277VAC 50/60Hz, 10A GP, 277VAC 50/60Hz, 1/2 hp, 125VAC, 1 hp, 250VAC
- DC ratings: up to 25VDC at 0.75A, 28VDC at 0.5A
- Electrical life: 10,000 cycles
- Operating and storage temperature: -40°C to +85°C
- Materials: thermoset housing, copper alloy contacts, silver plated
- Terminals: brass quick connect or solder terminals
- Actuator options: standard, roller, or custom shapes
- Rated for resistive loads and wet/damp environments
- Dimensions vary by model with panel mounting threads, generally 9.5mm to 15mm diameter
- Certifications: UL Listed, IP66/IP68
- Suitable for outdoor industrial equipment, lift controls, and harsh environment machinery
Buy the C&K Series PT Power Toggle Switch: PT208SSQ
Enhance your equipment with the durable C&K Power Toggle Switch, designed for outdoor and industrial environments. With IP66/IP68 protection, UL certification, and high electrical ratings up to 15A, it ensures reliable operation even in harsh conditions. Ideal for lift controls, weather-resistant machinery, and off-road vehicles, this switch features a robust thermoset housing, moisture resistance, and multiple terminal options. Order your C&K Series PT208SSQ toggle switch online now for unmatched performance and dependability in demanding industrial and outdoor applications.
Order your C&K Series PT208SSQ sealed power toggle switch today and ensure reliable performance in demanding outdoor and industrial applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PT208SSQ?
You can click on the BUY or RFQ button to purchase PT208SSQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PT208SSQ?
You can download the PT208SSQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PT208SSQ?
C&K COMPONENTS
