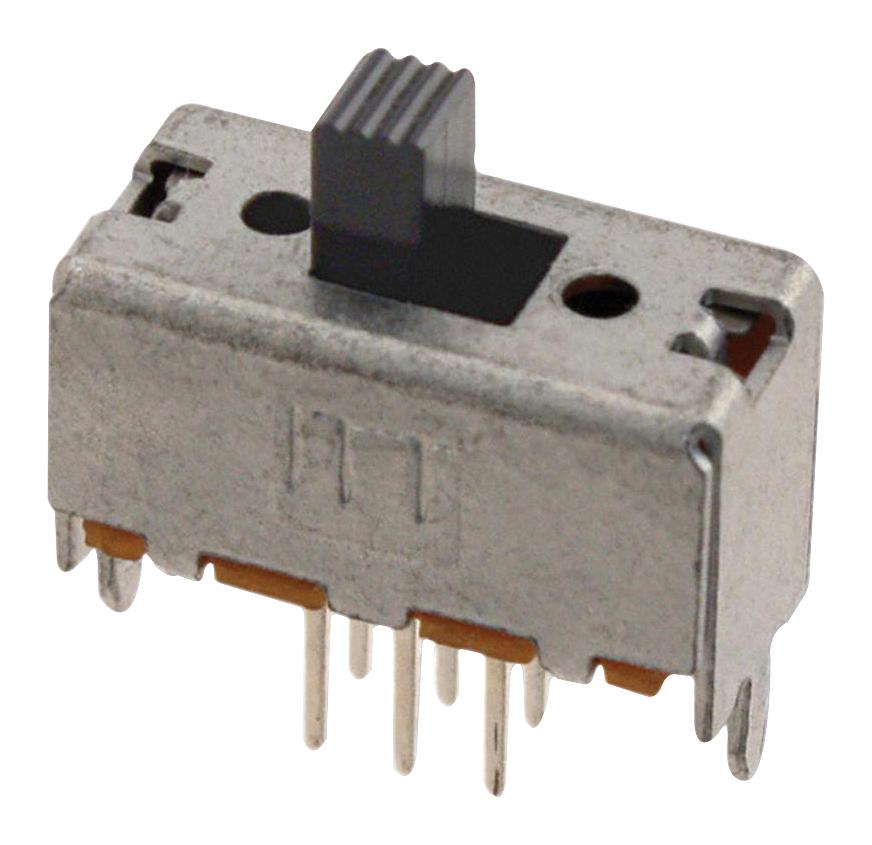

C&K COMPONENTS OS202011MV4QN1 Miniature Slide Switch
The OS series miniature slide switches are compact, high-quality electronic components suitable for circuit switching in various applications including consumer electronics, test equipment, and network products. Made with phenolic resin bases and silver-plated copper contacts, these switches support mechanical and electrical life cycles of 10,000 operations. They feature RoHS compliance, halogen-free materials, and operate reliably between -30°C and +70°C. Multiple configurations include SPDT and DPDT functions with terminal sealing and high-temperature options, making them versatile for panel and PC mounting uses.
C&K COMPONENTS OS202011MV4QN1 Miniature Slide Switch Specifications:
- Contact Resistance: 20 mΩ or less
- Mechanical & Electrical Life: 10,000 cycles
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Contact Rating: 0.1A to 0.38A depending on model
- Operating Temperature: -30°C to +70°C
- Contact Material: Copper alloy, silver plated
- Stationary Contacts: Brass, silver plated
- Housing Material: Phenolic resin
- Actuator Material: POM or PA46 (high temp option)
- Dimensions: Vary per model; terminal sealing included
- Standards: RoHS compliant, halogen free
Buy the Buy OS Series Miniature Slide Switches Part Number OS202011MV4QN1 Online
Purchase the OS series miniature slide switch OS202011MV4QN1 online today for dependable circuit control. Designed with RoHS compliance and sealed terminals, this switch offers high durability, precision performance, and multiple configurations to meet your needs in consumer electronics, testing, and network equipment. Its compact size and rated operation support long-lasting service in various environments between -30°C and +70°C. Order now to ensure a quality component for your electronic applications, backed by fast delivery and trusted customer support.
Get OS Series switch OS202011MV4QN1 today—built for precision, durability, and reliable circuit switching in your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS202011MV4QN1?
You can click on the BUY or RFQ button to purchase OS202011MV4QN1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS202011MV4QN1?
You can download the OS202011MV4QN1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS202011MV4QN1?
C&K COMPONENTS
