C&K COMPONENTS PTS850VM18PSMTRLFS Tactile Switch
The PTS850 Series is a compact 5.4x5mm SMT side actuated tactile switch offering reliable momentary contact operation suitable for various portable electronic devices such as headphones, health monitors, and navigation systems. Available in different actuation forces of 180 gf and 350 gf, it features SMT termination, a travel distance of 0.2 mm, and a durable lifecycle of 50,000 cycles. Its operating temperature ranges from -40°C to 85°C, ensuring robust performance in diverse environments, with easy infrared reflow soldering compatibility in accordance with IEC61760-1 standards.
C&K COMPONENTS PTS850VM18PSMTRLFS Tactile Switch Specifications:
- Function: momentary action
- Contact arrangement: SPST N.O.
- Terminals: SMT termination
- Travel: 0.2 mm + 0.1mm
- Max voltage: 12 VDC
- Max current: 50 mA
- Contact resistance: 500 mΩ
- Insulation resistance: 100 MΩ min.
- Operating temperature: -40°C to 85°C
- Storage temperature: -30°C to 85°C
- Lifecycle: 50,000 cycles
- Soldering: Infrared Reflow Soldering per IEC61760-1 standards
- Actuation Force: 180 gf & 350 gf versions
- Dimensions: 5.4x5mm, travel 0.2mm, process compatible
- Package: reel, SMT mounting, compatible with pick-and-place machines

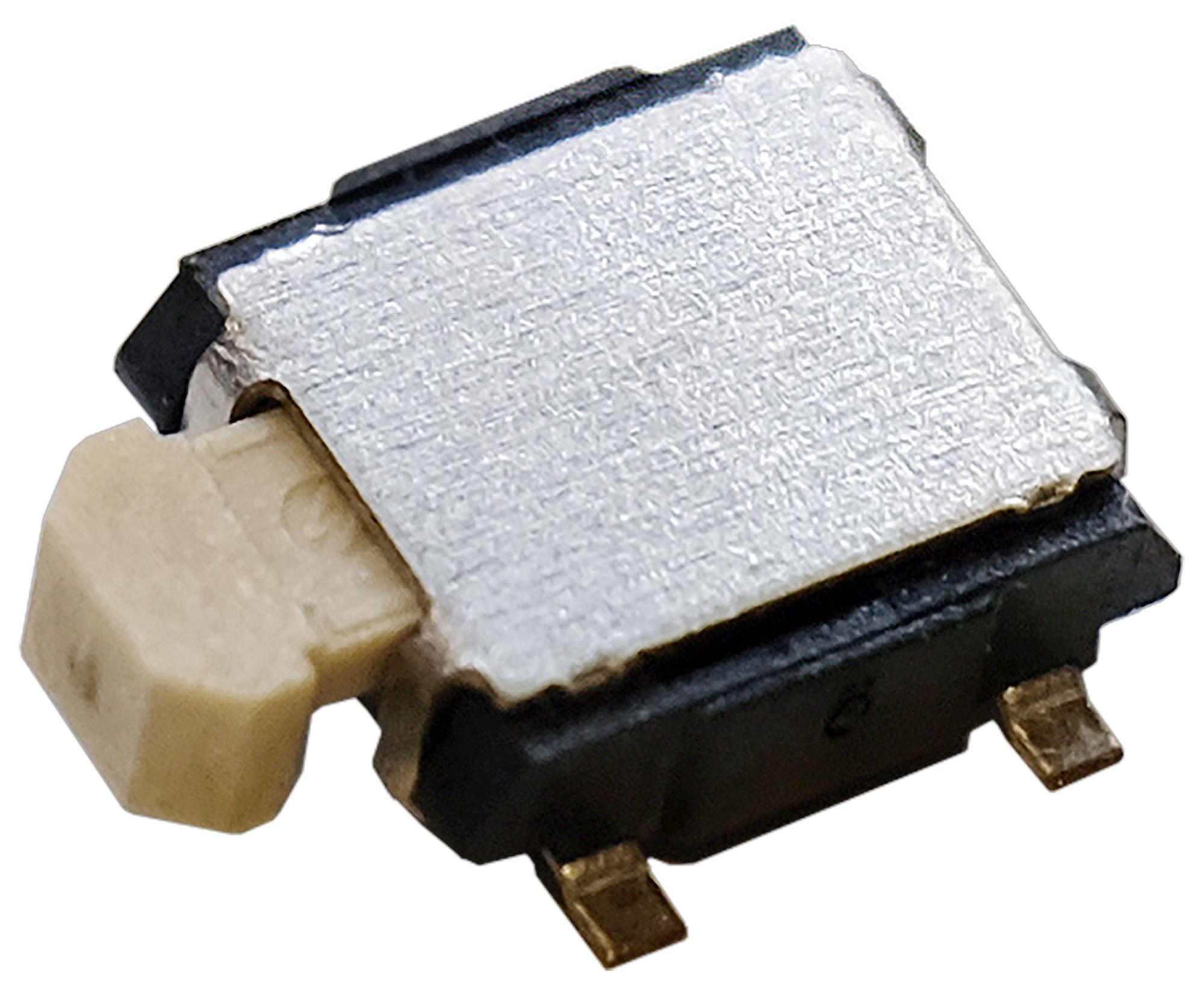

Buy the Ck Switches Series PTS850 5.4x5mm SMT Tactile Switch: PTS850VM18PSMTR
Purchase the high-quality PTS850 Series tactile switch online to enhance your electronic device's responsiveness and durability. Designed with a compact 5.4x5mm footprint, it offers reliable momentary contact operation suitable for headphones, health monitors, and navigation systems. Available in 180 gf and 350 gf actuation forces, it features SMT terminals and a 50,000-cycle lifespan. Perfect for engineers and designers needing dependable switches with easy soldering, this component ensures superior performance in various environmental conditions and rapid delivery from trusted online suppliers.
Buy Ck Switches PTS850VM18PSMTR now and experience unmatched reliability and performance in portable electronic applications with high cycle durability.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PTS850VM18PSMTRLFS?
You can click on the BUY or RFQ button to purchase PTS850VM18PSMTRLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PTS850VM18PSMTRLFS?
You can download the PTS850VM18PSMTRLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PTS850VM18PSMTRLFS?
C&K COMPONENTS
