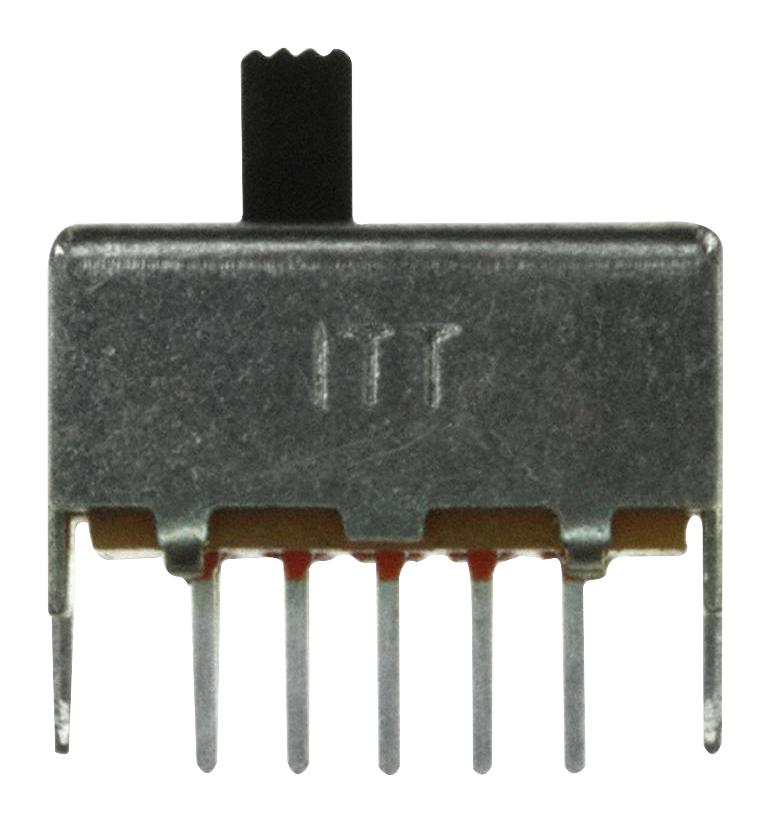

C&K COMPONENTS OS203011MV9QN1 Miniature Slide Switches
The OS Series Miniature Slide Switches are compact, reliable electrical switches designed for panel or PCB mounting, suitable for test equipment, consumer devices, and network components. These switches feature a mechanical and electrical life of 10,000 cycles, contact resistance of 20 mΩ or less, and insulation resistance of at least 100 MΩ at 500 VDC. Made with phenolic resin bases and copper alloy contacts, they operate accurately within -30°C to +70°C. Their halogen-free, RoHS-compliant material ensures environmental safety, and the switches support multiple configurations including single-pole, double-pole, and three-position options with various actuator types.
C&K COMPONENTS OS203011MV9QN1 Miniature Slide Switches Specifications:
- Contact Rating: See individual parts.
- Mechanical & Electrical Life: 10,000 cycles.
- Contact Resistance: 20 mΩ or less.
- Insulation Resistance: 100 MΩ min. at 500 VDC.
- Dielectric Strength: 500 VAC for 1 minute.
- Operating Temperature: -30°C to +70°C.
- Materials: Phenolic resin base, copper alloy movable contacts, brass stationary contacts.
- RoHS and halogen-free compliant materials.
- Mounting: PC and panel mounting; terminal sealed.
- Variety of actuator and terminal options available.
Buy the Buy General Electric OS Series Miniature Switch Part Number OS203011MV9QN1 Online
Enhance your projects with the reliable OS Series Miniature Slide Switches from General Electric. Designed for durability with 10,000 cycles, these switches are RoHS compliant and suitable for PCB or panel mounting. They feature a contact resistance of 20 mΩ or less, insulation resistance of 100 MΩ, and operate in temperatures from -30°C to +70°C. Available in various configurations, these switches ensure secure electrical connections for test equipment, consumer electronics, and network products. Purchase online today for fast delivery and superior quality.
Buy General Electric OS203011MV9QN1 now and experience unmatched reliability and performance in compact, RoHS-compliant switch solutions suitable for diverse applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS203011MV9QN1?
You can click on the BUY or RFQ button to purchase OS203011MV9QN1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS203011MV9QN1?
You can download the OS203011MV9QN1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS203011MV9QN1?
C&K COMPONENTS
