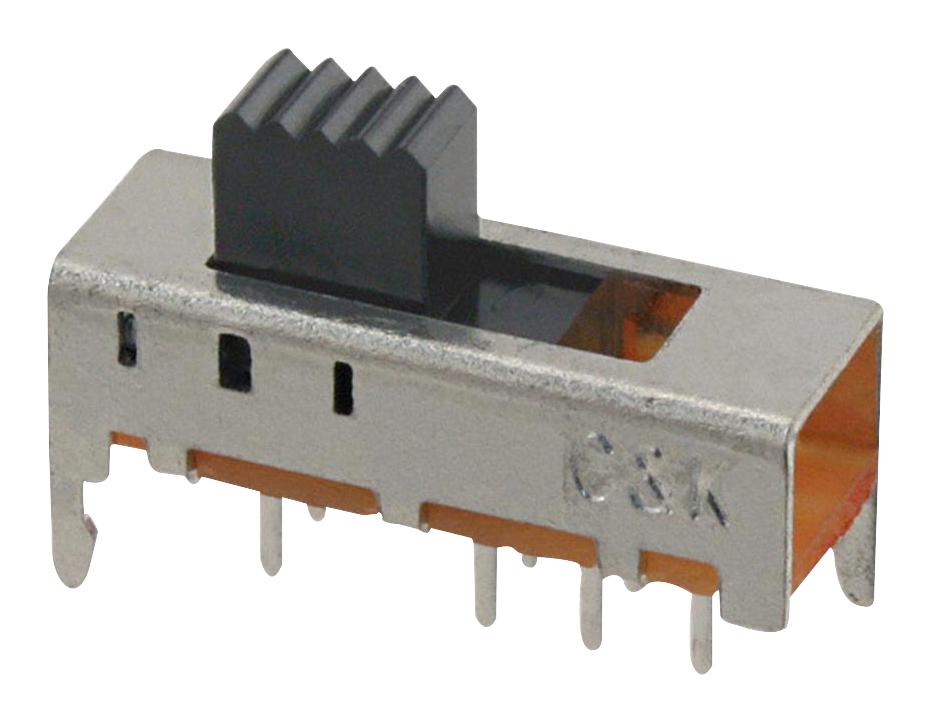

C&K COMPONENTS OS203012MU5QP1 Miniature Slide Switch
The OS series miniature slide switches are compact, reliable components suitable for various applications including test and measurement equipment, consumer products, and network devices. They feature a choice of actuators and terminations with options for RoHS compliance and halogen-free materials. These switches offer mechanical and electrical life of 10,000 cycles, contact resistance of 20 mΩ or less, insulation resistance of 100 MΩ minimum at 500 VDC, and operate within -30°C to +70°C. They include sealed terminals with copper alloy contacts, silver plated for durability, and brass stationary contacts, ensuring consistent performance in diverse environments.
C&K COMPONENTS OS203012MU5QP1 Miniature Slide Switch Specifications:
- Contact Resistance: 20 mΩ or less
- Mechanical & Electrical Life: 10,000 cycles
- Insulation Resistance: 100 MΩ min at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Operating Temperature: -30°C to +70°C
- Movable Contact Material: Copper alloy, silver plated
- Stationary Contacts: Brass, silver plated
- Contact Rating: Varies by model, typically 0.1A to 0.38A @ 30 VDC
- Base Material: Phenolic resin
- Actuator Material: POM or PA46 (high temperature option)
- Housing Plate: SPCC Sn plated
- Packaging: Bulk
- Terminals: Brass, silver plated, sealed terminals
Buy the OS Series Miniature Slide Switches: OS203012MU5QP1
Order the OS Series miniature slide switch OS203012MU5QP1 online today and enjoy high-quality switching performance with sealed terminals, RoHS compliance, and long-lasting durability. Perfect for consumer electronics, test and measurement equipment, and network devices, this switch offers 10,000 cycles, low contact resistance, and operation within -30°C to +70°C. With various actuator options and reliable sealed terminals, buying online ensures prompt delivery and expert support for your electronic switching needs.
Buy OS Series OS203012MU5QP1 now and experience unmatched reliability and performance in miniature sliding switches with sealed terminals.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS203012MU5QP1?
You can click on the BUY or RFQ button to purchase OS203012MU5QP1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS203012MU5QP1?
You can download the OS203012MU5QP1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS203012MU5QP1?
C&K COMPONENTS
