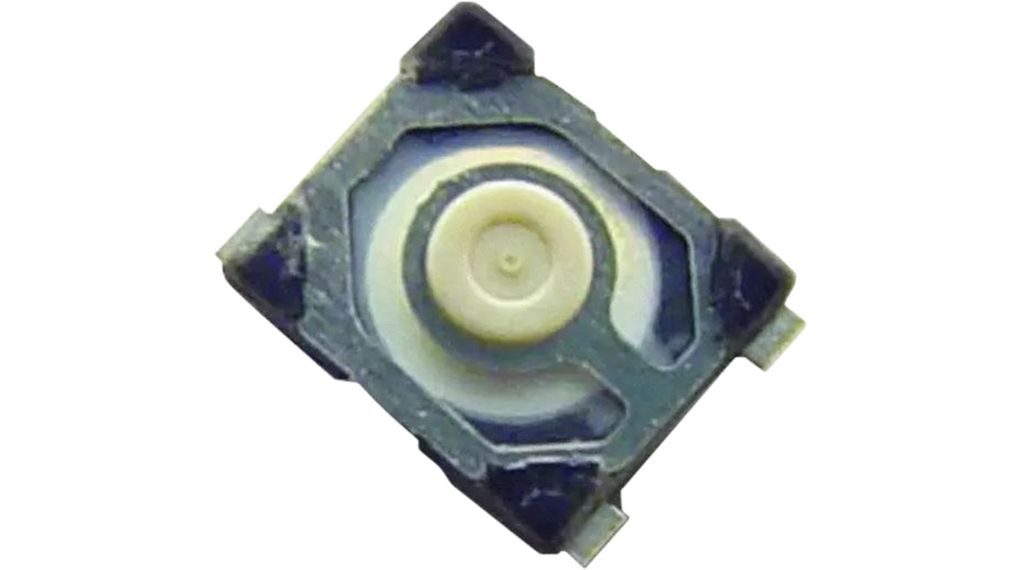

C&K COMPONENTS Y34H03122FP Nano-Miniature SMT Switch
The C&K COMPONENTS Y34H03122FP is a nano-miniature SMT top-actuated switch, offering a compact solution for various applications. Its key features include a smallest footprint, smallest thickness with an integrated actuator, extended life cycles, IP68 rating, and ultra-low current capabilities. Typical applications include mobile phones, hearing aids, MP3 accessories, Bluetooth headsets, automotive keyless entry systems, smoke and CO detectors, and e-readers. The switch utilizes J lead type for SMT and offers momentary action with a normally open SPST contact arrangement. It is suitable for infrared reflow soldering and is available in reels of 5,000 pieces.
C&K COMPONENTS Y34H03122FP Nano-Miniature SMT Switch Specifications:
- FUNCTION: momentary action, normally open
- CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.
- TERMINALS: J lead type for SMT
- TRAVEL (mm): 0.15 ± 0.1
- Operating force: 1.0 (100) ± 25% Newtons (grams)
- Tactile Feeling: ≥10%
- Operating Life: 300,000 cycles
- MAXIMUM POWER: 0.5 VA
- MAXIMUM VOLTAGE: 32 VDC
- MINIMUM VOLTAGE: 20 mV
- MAXIMUM CURRENT DC: 50 mA
- MINIMUM CURRENT DC: 1 mA
- DIELECTRIC STRENGTH: ≥ 250 Vrms (1mn)
- CONTACT RESISTANCE: ≤ 150 mΩ
- INSULATION RESISTANCE: ≥ 50 MΩ
- BOUNCE TIME: ≤ 6 ms
- OPERATING TEMPERATURE: -40˚C to 85˚C
- STORAGE TEMPERATURE: -55˚C to +85˚C
- SOLDERING: Infrared Reflow Soldering in accordance with IEC61760-1
- Packaging: In reels of 5,000 pieces, EIA 481B, External diameter 180 mm
