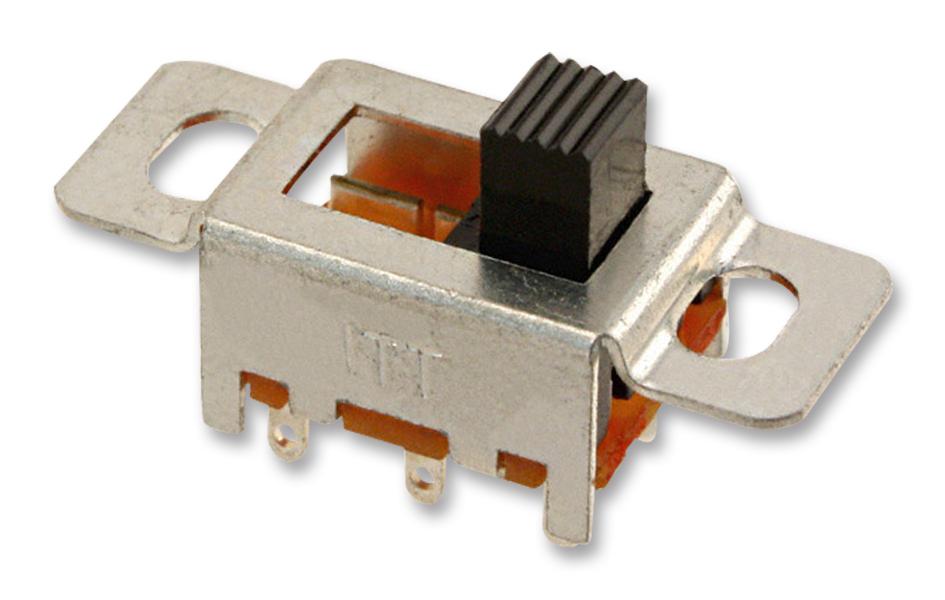

C&K COMPONENTS OS203013MT7QN1 Miniature Slide Switch
The OS Series Miniature Slide Switches are versatile, high-quality components suitable for test and measurement equipment, consumer electronics, and network devices. They feature various actuator types and terminations, with options for gold or silver plating for enhanced durability and conductivity. Designed with phenolic resin bases and copper alloy movable contacts, these switches provide reliable operation with 100 MΩ insulation resistance, a dielectric strength of 500 VDC for 1 minute, and operating temperature ranging from 30°C to +70°C. They are RoHS compliant, halogen-free, and feature sealed terminals for added protection.
C&K COMPONENTS OS203013MT7QN1 Miniature Slide Switch Specifications:
- Base Material: Phenolic resin
- Actuator Material: POM, black
- Contact Rating: 0.1A @ 12 VDC
- MOVABLE CONTACT: Copper alloy, silver plated or gold
- Stationary Contacts: Brass, silver plated
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 500 VDC for 1 min
- Operating Temperature: -30°C to +70°C
- Sealed Terminals: Yes
- RoHS Compliance: Yes
- Halogen Free Material: Yes
- Dimensions and travel vary by model, contact ratings ranging from 0.1A to 0.34A at 12-30 VDC,Suitable for PCB and panel mounting
Buy the OS Series Miniature Slide Switches: OS203013MT7QN1
Experience the reliability of OS Series Miniature Slide Switches, perfect for various electronic applications requiring durable, sealed, and RoHS-compliant switching solutions. Designed with high-quality materials and available with gold or silver plating, these switches ensure consistent performance in test devices, consumer electronics, and network equipment. Their sealed terminals and robust construction protect against dust and moisture, while their efficient actuation and compact size make them ideal for versatile mounting options. Buy online now for fast delivery and OEM-quality performance.
Get OS Series Miniature Slide Switches OS203013MT7QN1 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS203013MT7QN1?
You can click on the BUY or RFQ button to purchase OS203013MT7QN1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS203013MT7QN1?
You can download the OS203013MT7QN1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS203013MT7QN1?
C&K COMPONENTS
