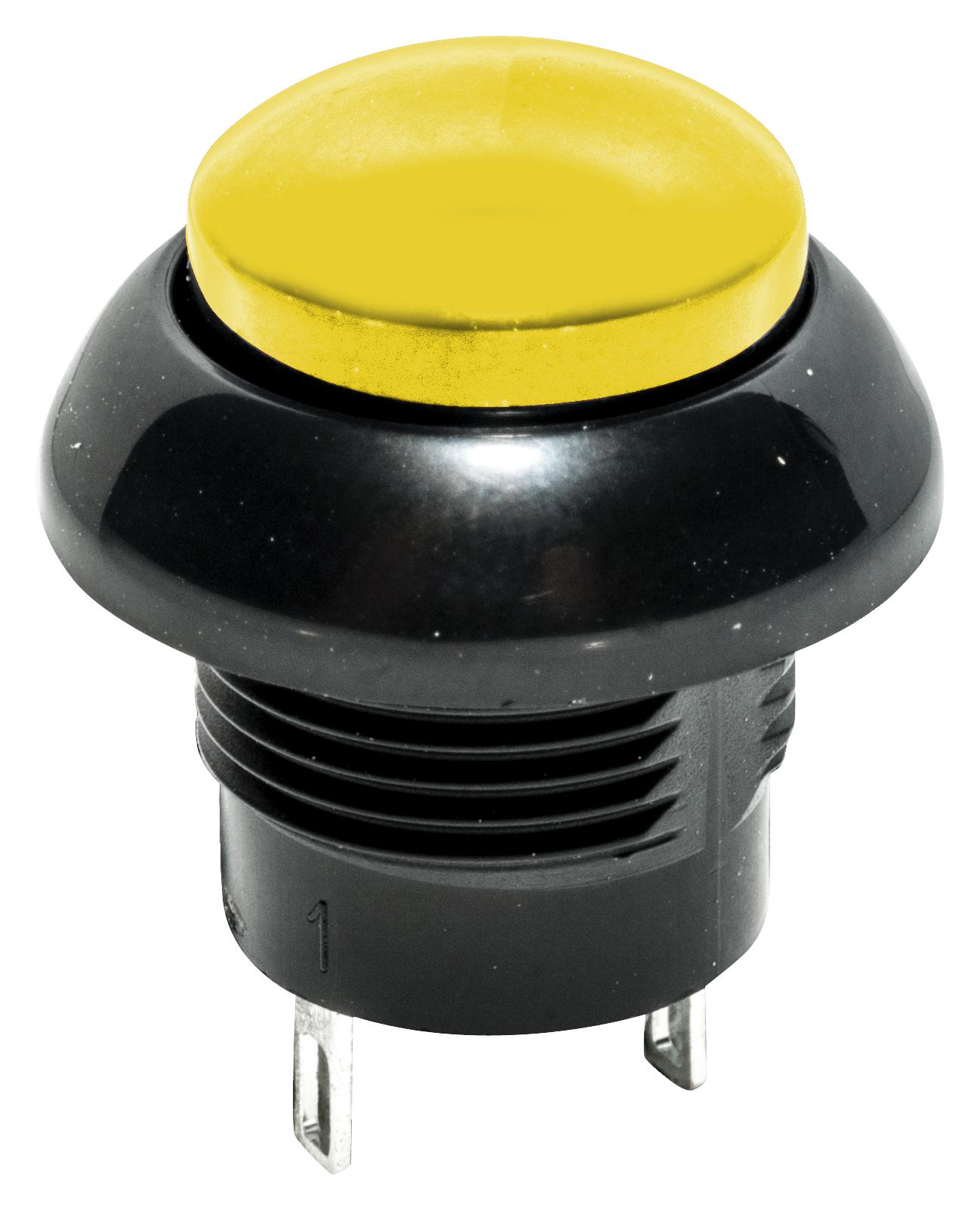

C&K COMPONENTS PNP8E5D2Y03QE Sealed Pushbutton Switch
The PNP Series Sealed Pushbutton Switch features snap-action for positive tactile feedback, IP68 sealing for harsh environments, and a long operating life of 1,000,000 cycles. Designed for industrial control, it supports resistive loads up to 5A and offers options for various housing styles, termination types, and wire leads. Suitable for control grips, off-road panels, heavy equipment, lifts, and conveyor controls, this switch provides reliable performance with high durability and environmental sealing, making it ideal for demanding industrial applications.
C&K COMPONENTS PNP8E5D2Y03QE Sealed Pushbutton Switch Specifications:
- FUNCTION: SPST, SPDT Double Break (Form Z) Momentary
- CONTACT ARRANGEMENT: N.O. and N.C.
- MOUNTING TYPE: Threaded front mount
- OPERATING LIFE: 1,000,000 cycles
- TOTAL TRAVEL: 2 mm max.
- OPERATING POINT: 0.9 + 0.25 mm
- OVER TRAVEL: 0.25 mm min.
- OPERATING FORCE: 3N + 1.5N or 8N + 1.5N
- VIBRATION: 10-500 Hz 10g Max
- SHOCK: 50g 11ms sawtooth wave
- CONTACT RATING: 5A/32 VDC resistive (25,000 cycles), 10mA/5 VDC resistive (1,000,000 cycles)
- DIELECTRIC STRENGTH: 1000 V AC for 1 min.
- INSULATION RESISTANCE: 1 GΩ @ 500 VDC.
- INITIAL CONTACT RESISTANCE: 50 mΩ max.
- OPERATING TEMPERATURE: -40°C to +85°C
- SEALING: IP68
- HOUSING MATERIAL: PBT/PC
- ACTUATOR MATERIAL: PBT
- TERMINALS: Copper with silver nickel inlay, silver plating
- MOVABLE CONTACT: Copper alloy, gold over silver plating
- Internal Seal: Silicone rubber
Buy the CNP Series Pushbutton Switch: PNP8E5D2Y03QE
Order the CNP Series PNP8E5D2Y03QE sealed pushbutton switch online today and enjoy quick delivery, secure checkout, and trusted brand reliability. Designed for industrial and harsh environment applications, this switch features IP68 sealing, snap-action tactile feedback, and a long operational life of 1,000,000 cycles. Compatible with various mounting options and termination types, it ensures dependable performance in control panels, heavy equipment, and conveyor systems. Elevate your control solutions now with this durable, high-quality pushbutton switch available for quick purchase online.
Buy CNP Series PNP8E5D2Y03QE sealed pushbutton switch now and experience unmatched reliability and industrial-grade durability.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PNP8E5D2Y03QE?
You can click on the BUY or RFQ button to purchase PNP8E5D2Y03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PNP8E5D2Y03QE?
You can download the PNP8E5D2Y03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PNP8E5D2Y03QE?
C&K COMPONENTS
