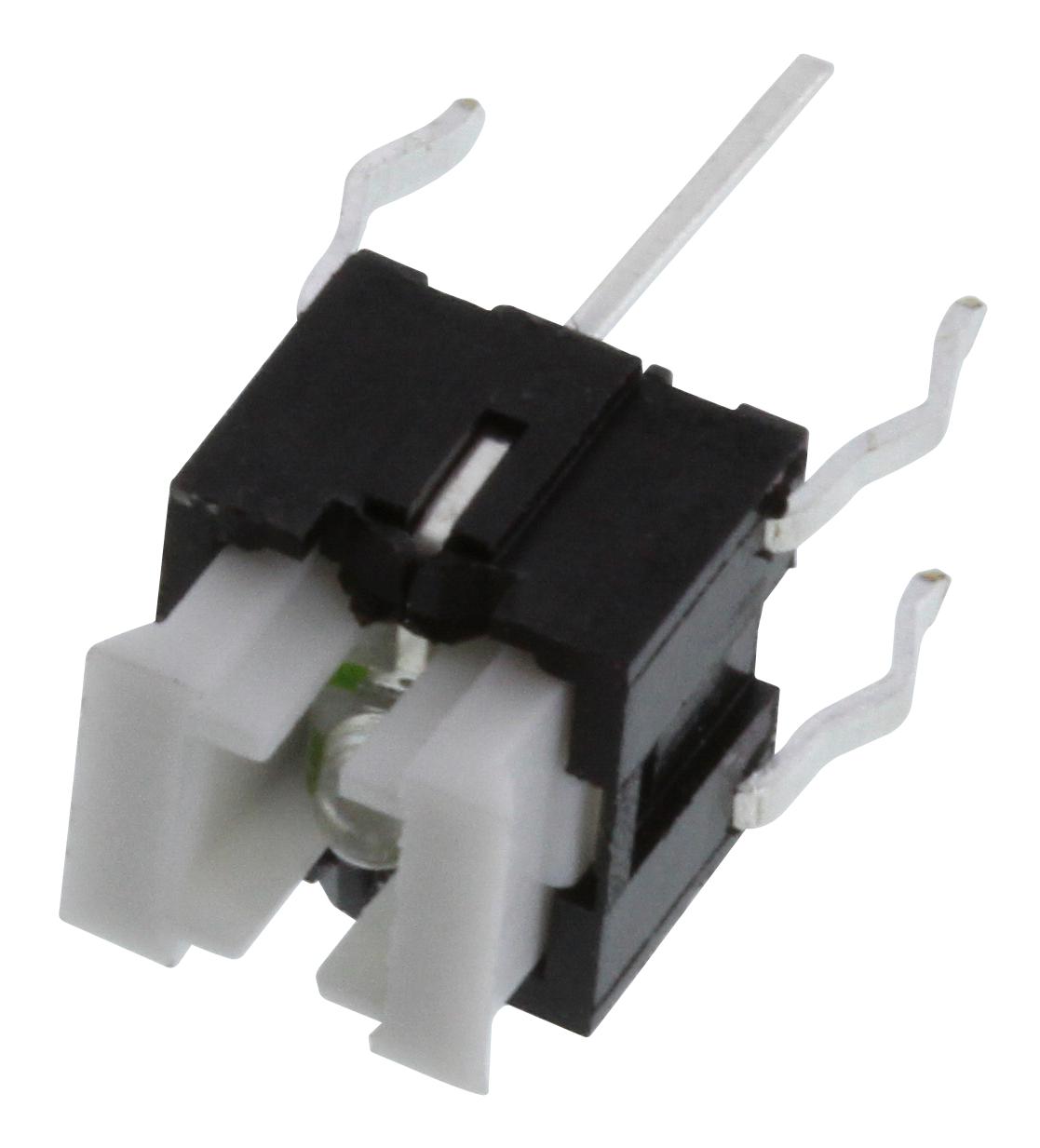

C&K COMPONENTS ILSTA25030 LED Tactile Switch
The ILS Series integrated LED tactile switch features a compact design, multiple LED color options, and a high cycle life of 100,000 operations. Suitable for consumer electronics, health monitoring devices, and control panels, it offers a travel distance of 0.25 mm and operates reliably within -40°C to +85°C. Available in different heights and actuation forces, it ensures excellent insulation resistance of 100MΩ and withstands voltage up to 250VAC. Its durable construction and diverse options make it ideal for various electronic applications requiring tactile feedback and illumination.
C&K COMPONENTS ILSTA25030 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1mm
- Operating life: 100,000 cycles
- Rating: 100mA max. @ 30VDC, 10pA min. @ 1VDC
- Insulation resistance: 100MΩ min.
- Dielectric withstand voltage: 250VAC (50-60Hz for 1 min)
- Bounce time: ON/OFF 5ms max.
- Initial contact resistance: 100mΩ max.
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- LED color options: Red, Yellow/Green, Blue, White, Green
- Mechanical style options: TA (7.20 mm), TB (8.50 mm), TC (7.00 mm)
- Actuation force options: 180gf, 250gf
- Dimensions: Adjustable based on style, circuit layouts detailed in datasheet.
Buy the CK Switches Series ILS LED Tactile Switch: ILSTA25030
Order the CK Switches Series ILS LED tactile switch online today to ensure your electronic devices benefit from reliable tactile feedback and bright LED illumination. With multiple height and LED color options, rated for 100,000 cycles, and operating consistently across -40°C to +85°C, this switch is ideal for consumer electronics, health monitors, and control panels. Easy to customize with our build-a-switch concept, it provides robust performance, durable construction, and versatile options that meet your project requirements for quality and durability.
Buy CK Switches Series ILS ILSTA25030 now and experience unmatched reliability, illumination options, and high durability for your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTA25030?
You can click on the BUY or RFQ button to purchase ILSTA25030 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTA25030?
You can download the ILSTA25030 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTA25030?
C&K COMPONENTS
