C&K COMPONENTS PNP8S2D2W03QE Sealed Pushbutton Switch
The PNP Series sealed pushbutton switch offers reliable operation with snap-action positive tactile feedback and is IP68 sealed for harsh environments. It features a mechanical life of 1,000,000 cycles, suitable for industrial control, heavy equipment, lifts, and conveyor controls. Available in SPST and SPDT configurations, with or without gold or silver contacts, it is epoxy sealed for durability. The switch has a threaded front mount, operating force of 3N, and operates over a temperature range of -40°C to +85°C, ensuring longevity in various demanding applications.
C&K COMPONENTS PNP8S2D2W03QE Sealed Pushbutton Switch Specifications:
- Function: SPST, SPDT Double Break (Form Z), Momentary
- Contact Arrangement: N.O. and N.C.
- Mounting Type: Threaded front mount
- Torque for threaded body: Do not exceed 10 in-Ibs (1.35 N-m)
- Operating Life: 1,000,000 cycles
- Total Travel: 2 mm max
- Operating Point: 0.9 + 0.25 mm
- Over Travel: 0.25 mm min
- Operating Force: 3N + 1.5N
- Vibration: 10-500 Hz, 10g Max
- Shock: 50g, 11ms sawtooth wave
- Contact Rating: 5A/32 VDC resistive (Silver, Option Q), 10mA/5 VDC resistive (Gold over Silver, Option G)
- Dielectric Strength: 1000 V AC for 1 min
- Insulation Resistance: 1 GΩ @ 500 VDC
- Initial Contact Resistance: 50 mΩ max
- Operating Temperature: -40°C to +85°C
- Housing: PBT/PC, Base: PBT, Cap: PBT
- Actuator: PBT
- Internal Seal: Silicone rubber
- Terminals: Copper with silver nickel inlay, silver plating
- Material: Epoxy terminal seal
- Sealing: IP68
- ESD Protection: 15KV min

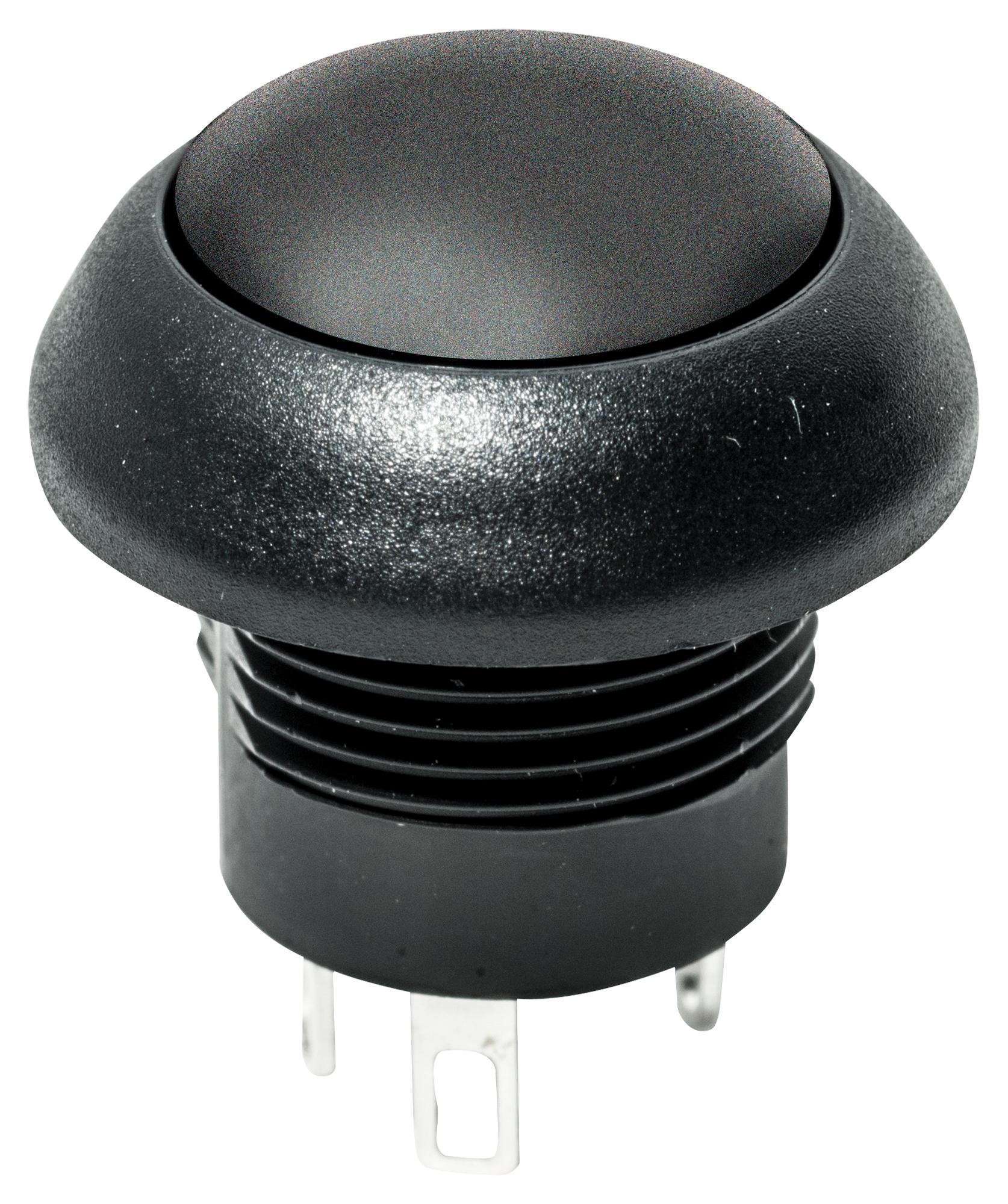

Buy the Buy CKS Sealed Pushbutton Switch Part Number PNP8S2D2W03QE Online
Enhance your industrial projects with the CKS PNP Series sealed pushbutton switch. It features IP68 sealing for durability, a 1,000,000 cycle mechanical life, and is suitable for heavy-duty and control applications. Available in SPST and SPDT configurations with silver or gold contacts. This switch operates in temperatures from -40°C to +85°C, with a 2 mm travel and a 3N operating force, making it ideal for demanding environments. Secure yours online now for dependable performance.
Order your CKS PNP Series sealed pushbutton switch with epoxy sealing and long cycle life today and ensure reliable control in harsh environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PNP8S2D2W03QE?
You can click on the BUY or RFQ button to purchase PNP8S2D2W03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PNP8S2D2W03QE?
You can download the PNP8S2D2W03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PNP8S2D2W03QE?
C&K COMPONENTS
