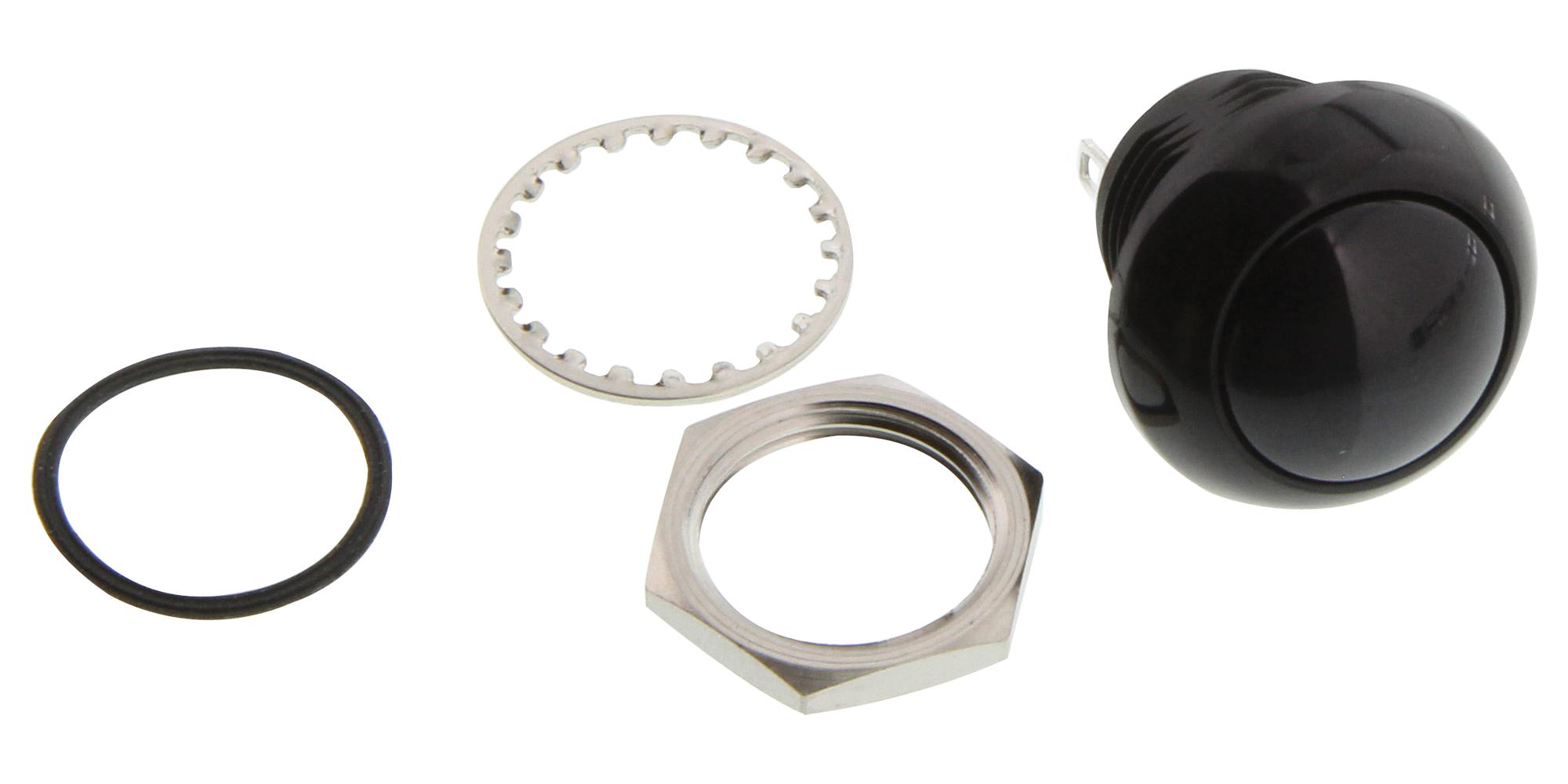

C&K COMPONENTS PNP8S2D2Y03QE Sealed Pushbutton Switch
The PNP Series Sealed Pushbutton Switch is a durable, IP68-rated device designed for harsh environments. It features snap-action operation for positive tactile feedback, with a mechanical lifespan of 1,000,000 cycles. The switch offers options for SPST and SPDT contact configurations with momentary operation, and current ratings up to 5A resistive load. Constructed with a PBT/PC housing, silicone rubber internal seal, and copper terminals with silver nickel inlay, it handles temperatures from -40°C to +85°C and is RoHS compliant, suitable for industrial control applications.
C&K COMPONENTS PNP8S2D2Y03QE Sealed Pushbutton Switch Specifications:
- FUNCTION: SPST, SPDT Double Break (Form Z) Momentary
- CONTACT ARRANGEMENT: N.O. and N.C.
- MOUNTING TYPE: Threaded front mount
- OPERATING LIFE: 1,000,000 cycles
- TOTAL TRAVEL: 2 mm max.
- OPERATING POINT: 0.9 + 0.25 mm
- OVER TRAVEL: 0.25 mm min.
- OPERATING FORCE: 3N + 1.5N / 8N + 1.5N
- VIBRATION: 10-500 Hz 10g Max
- SHOCK: 50g 11ms sawtooth wave
- CONTACT RATING: 5A/32 VDC resistive, 3A/32 VDC resistive, 10mA/5 VDC resistive
- DIELECTRIC STRENGTH: 1000 V AC for 1 min.
- INSULATION RESISTANCE: 1 GΩ @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max
- SEALING: IP68
- OPERATING TEMPERATURE: -40°C to +85°C
- BODY MATERIAL: PBT/PC
- TERMINALS: Copper with silver nickel inlay
- MOVABLE CONTACT: Copper alloy, gold over silver plating
- Internal Seal: Silicone rubber
Buy the Celsfe PNP8S2D2Y03QE – Reliable Elegant Pushbutton for Industrial Applications
Enhance your industrial control panels with the Celsfe PNP8S2D2Y03QE sealed pushbutton switch. Designed for durability, IP68 sealing, and high cycle life, it's perfect for demanding environments. Easy to install with threaded mount and versatile contact configurations, this switch supports resistive loads up to 5A. Crafted from high-quality materials like PBT/PC housing, with silver nickel plated terminals, it withstands extreme temperatures from -40°C to +85°C. Make your project more reliable with this industry-grade, RoHS-compliant pushbutton switch, available now online.
Order your Celsfe Series PNP8S2D2Y03QE sealed pushbutton switch today and ensure reliable control in harsh industrial environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PNP8S2D2Y03QE?
You can click on the BUY or RFQ button to purchase PNP8S2D2Y03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PNP8S2D2Y03QE?
You can download the PNP8S2D2Y03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PNP8S2D2Y03QE?
C&K COMPONENTS
