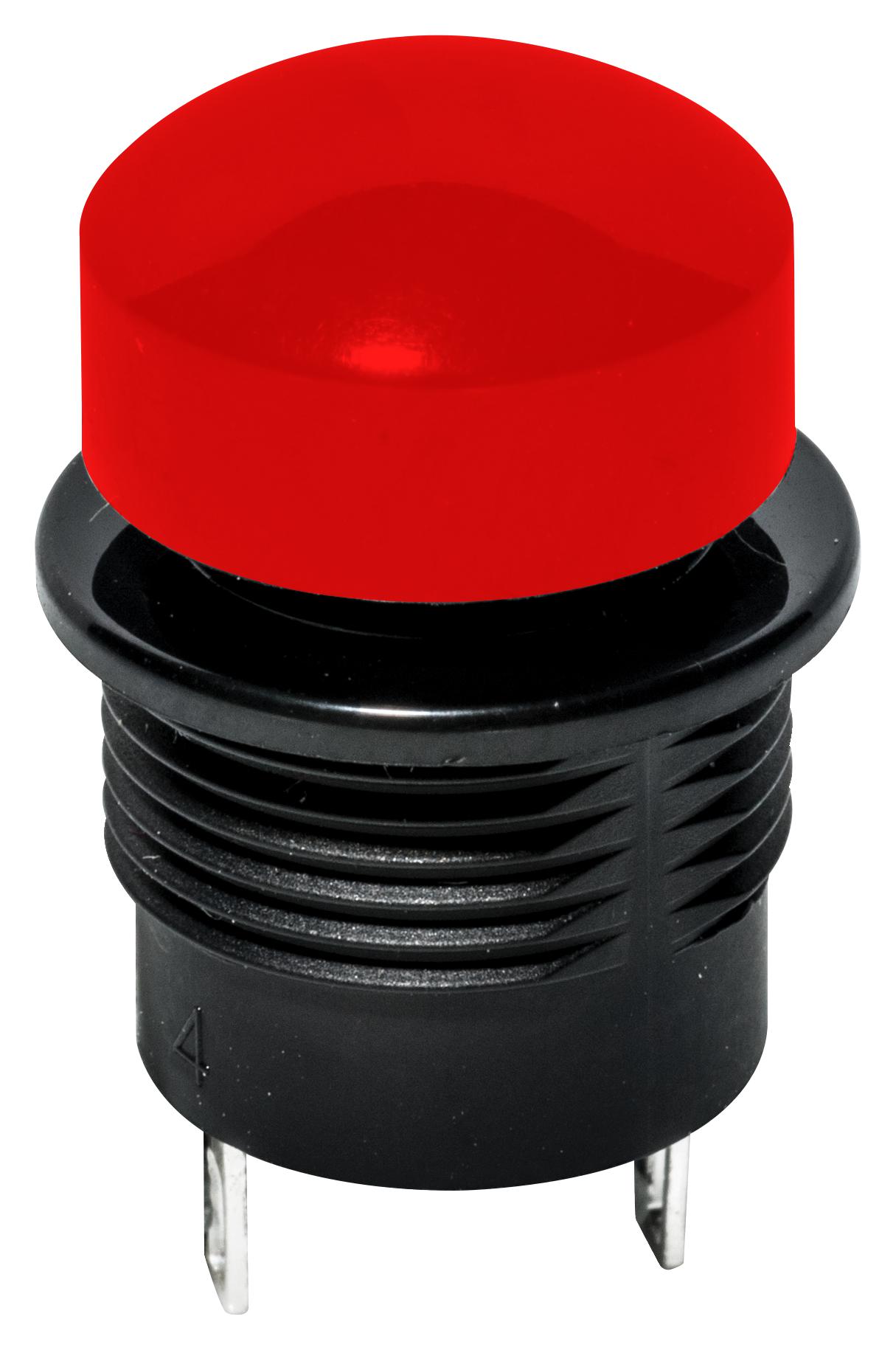

C&K COMPONENTS PNP8S3T2Y03QE Sealed Pushbutton Switch
The PNP Series Sealed Pushbutton Switch is designed for industrial and heavy-duty applications, offering IP68 sealing for harsh environments. It features snap-action contact for positive tactile feedback, a mechanical life of 1,000,000 cycles, and multiple configurations including SPST and SPDT. The switch operates under a force of 3N+1.5N with a total travel of 2 mm max., making it reliable for control panels, lifts, conveyor systems, and off-road machinery. Its robust housing and sealed design ensure durability and consistent performance in demanding conditions.
C&K COMPONENTS PNP8S3T2Y03QE Sealed Pushbutton Switch Specifications:
- Function: SPST, SPDT Double Break Momentary
- Contact Arrangement: N.O. and N.C.
- Mounting Type: Threaded front mount
- Mechanical Operating Life: 1,000,000 cycles
- Total Travel: 2 mm max.
- Operating Point: 0.9 + 0.25 mm
- Over Travel: 0.25 mm min.
- Operating Force: 3N + 1.5N
- Vibration: 10-500 Hz 10g Max
- Shock: 50g 11ms sawtooth wave
- Contact Rating: 5A/32 VDC resistive (silver), 10mA/5 VDC resistive (gold over silver)
- Dielectric Strength: 1000 V AC for 1 min.
- Insulation Resistance: 1 GΩ @ 500 VDC
- Initial Contact Resistance: 50 mΩ max
- Housing Material: PBT/PC
- Operating Temperature: -40°C to +85°C
- Sealing: IP68
- Actuator and housing components made of PBT and silicone rubber seal
- Terminals: Copper with silver nickel inlay
- Operating Environment: Suitable for heavy machinery in harsh conditions
Buy the CK Series Sealed Pushbutton Switch: PNP8S3T2Y03QE
Order the CK Series PNP8S3T2Y03QE Sealed Pushbutton Switch online today to ensure your industrial controls operate reliably under tough conditions. With IP68 sealing, a 1 million cycle lifespan, and easy threaded mounting, this switch is perfect for control panels, lifts, and heavy machinery. Its snap-action mechanism provides positive tactile feedback with a total travel of just 2 mm, operating force of 3N+1.5N, ideal for demanding applications requiring durable, high-performance switches.
Buy CK Series PNP8S3T2Y03QE now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS PNP8S3T2Y03QE?
You can click on the BUY or RFQ button to purchase PNP8S3T2Y03QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part PNP8S3T2Y03QE?
You can download the PNP8S3T2Y03QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of PNP8S3T2Y03QE?
C&K COMPONENTS
